    Sheet Metal Punching Machine

    CNC Servo Turret Punch Press

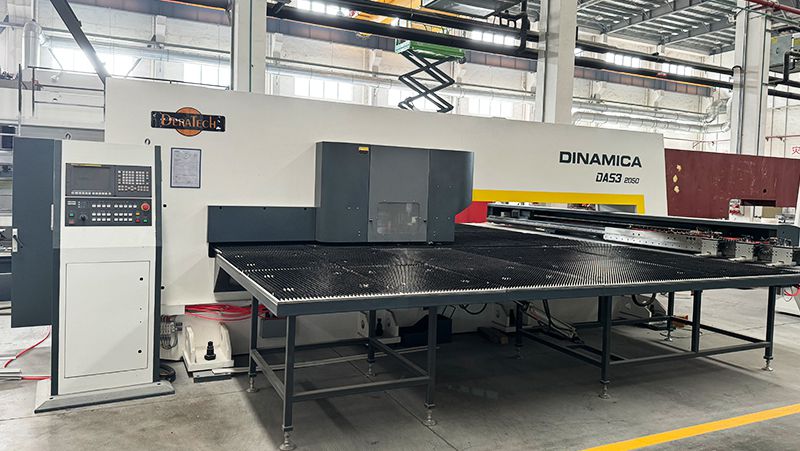

    DAS Series

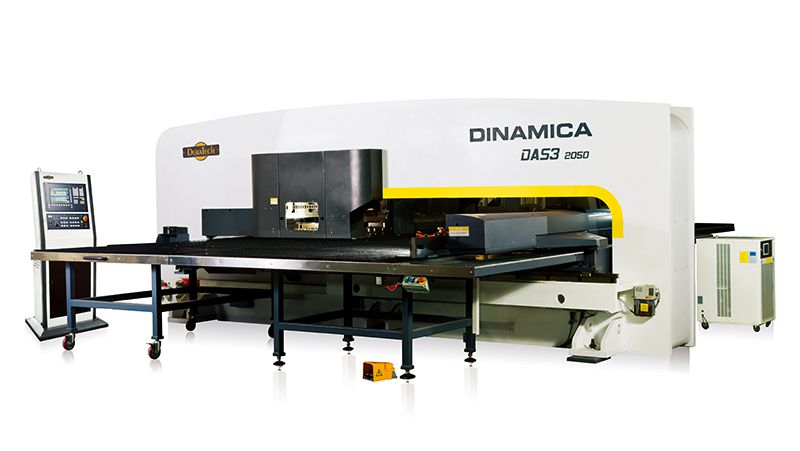

    DAS series CNC servo turret punch press adopts direct drive structure consisting of a servo motor, crankshaft and connecting rod, which is mature and reliable. It effectively eliminates mechanical clearance, resulting in high transmission precision, low noise, long lifespan, and minimal maintenance requirements. The use of closed-loop servo motors enhances the forming effect. With energy-saving design, it can efficiently recover braking energy generated during actual operation, effectively reducing the operating costs.

    Applications
    • Sheet metal processing
    • Electronic enclosure manufacturing process
    • Automotive parts manufacturing
    • Processing of aluminum curtain walls
    • Enclosure/Cabinet bending processing
    • Kitchenware bending
    • Engineering machinery component processing
    • Elevator component processing
    • Processing of small home appliances (including lighting fixtures)
    Parameters

    (cutting thickness: 6 to 16mm)

    • Parameters
    • Parameters
    Model DAS3.1250 DAS3.1550 DAS3.2050
    Punching capacity (kN) 300 300 300
    Punching driver Servo drive
    Processing range Max. thickness (mm) 6.35 6.35 6.35
    Max. sheet size (mm) Φ88.9 Φ88.9 Φ88.9
    Max. sheet size (mm) 1250x5000 1500x5000 2000x5000
    X/Y stroke (mm) 1250x2500 1500x2500 2000x2500
    Number of station 32(2AI) 32(2AI) 32(2AI)
    Max. moving speed (m/min) 100 100 100
    Turret speed (rpm) 30 30 30
    Punch frequency (hpm) 1500 1500 1500
    Number of control axis 5 (X/Y/A/C/P) 5 (X/Y/A/C/P) 5 (X/Y/A/C/P)
    CNC system Fanuc 0i-PF
    Punching precision (mm) ±0.10 ±0.10 ±0.10
    Comprehensive power (kW) 6.5 6.5 6.5
    Repetition accuracy (mm) ±0.03 ±0.03 ±0.03

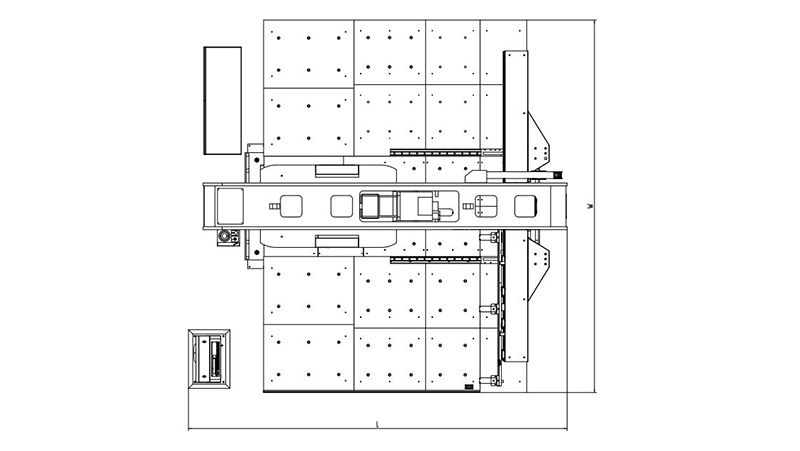

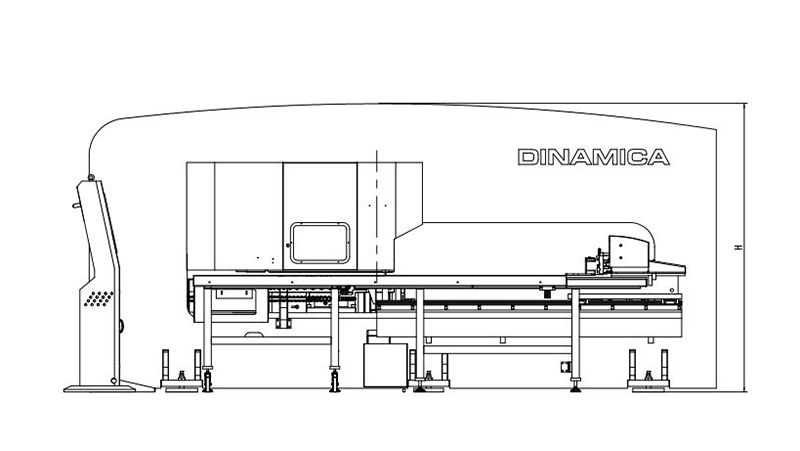

    Dimensions (L*W*H) (mm) 4800×5120×2330 5300×5120×2330 6300×5120×2330
    Weight (kg) 14000 15500 19000
    Details

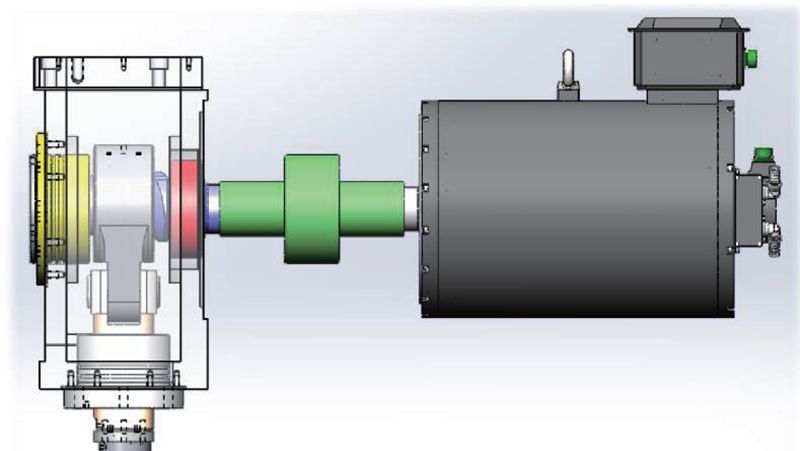

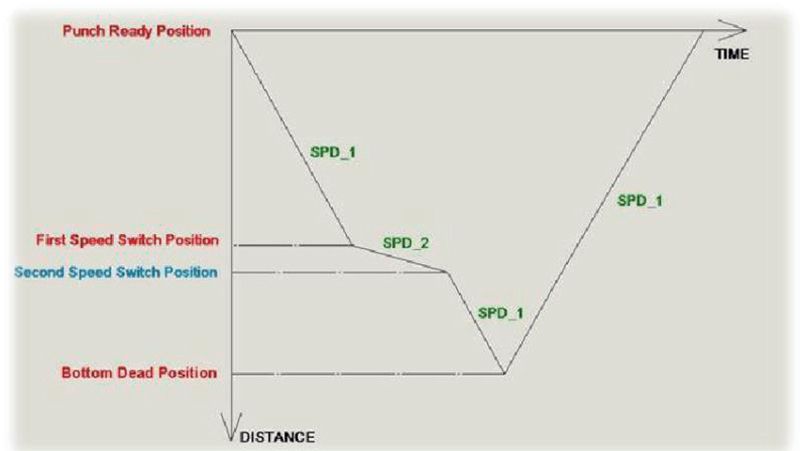

      1. Servo main drive
      2. Servo main drive
      1. Servo control ensures high speed and mute punching
      2. Servo control ensures high speed and mute punching

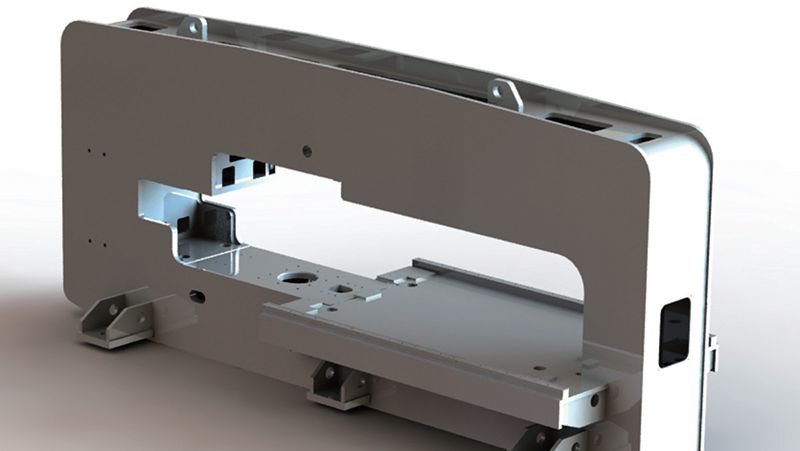

      1. O-shaped frame structure
      2. O-shaped frame structure

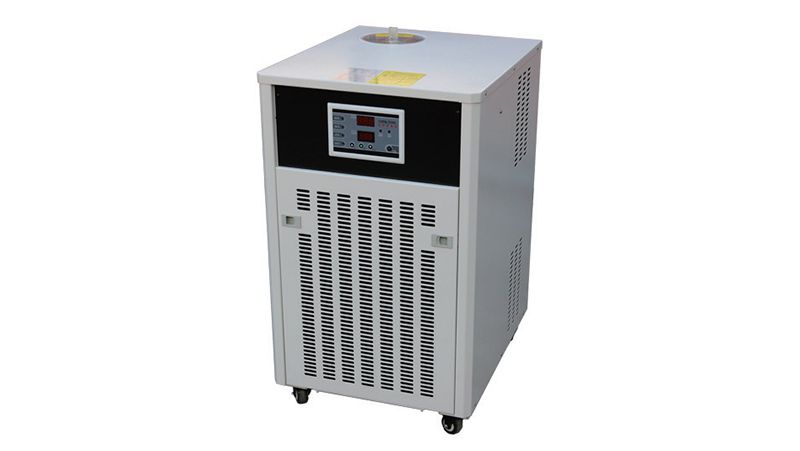

      1. Water cooler and air conditioner
      2. Water cooler and air conditioner

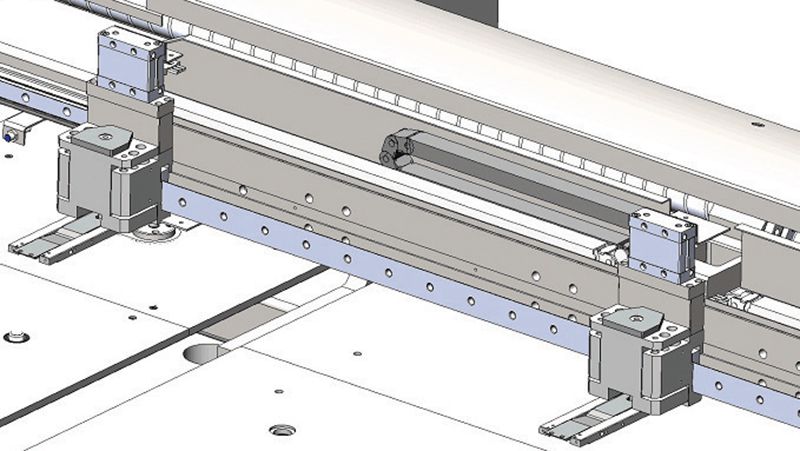

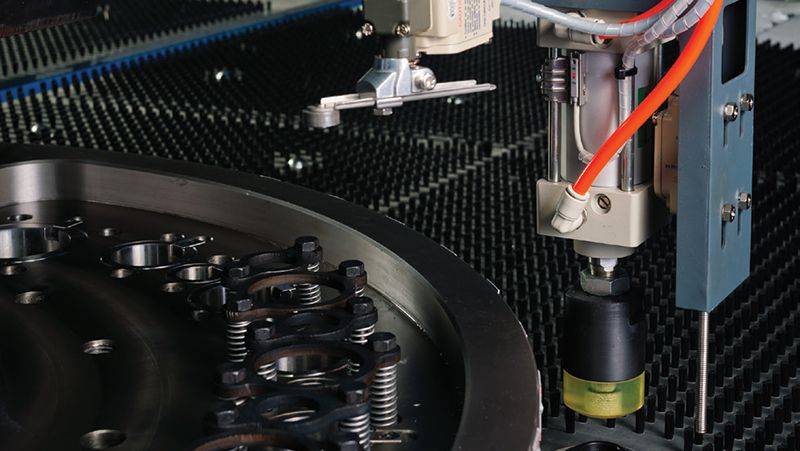

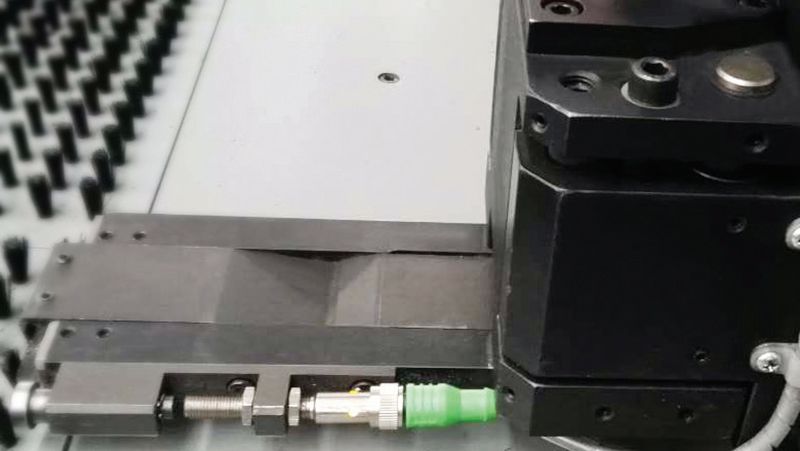

      1. Gripper
      2. Gripper

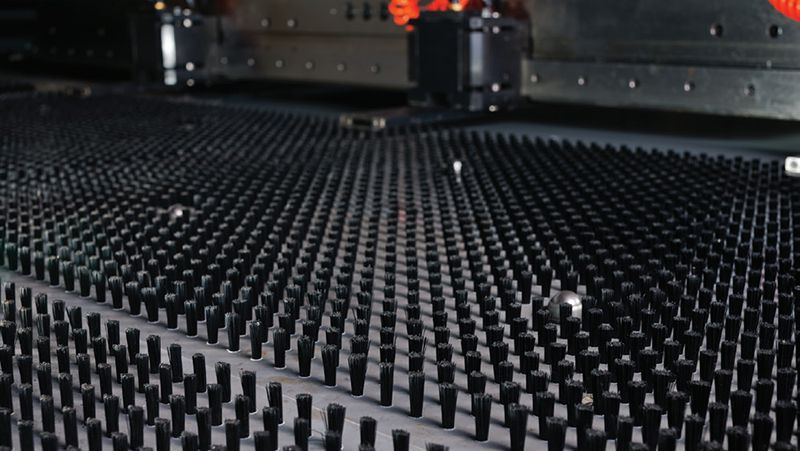

      1. Brush table with inserted roller balls
      2. Brush table with inserted roller balls
      1. Auto-index (station)
      2. Auto-index (station)

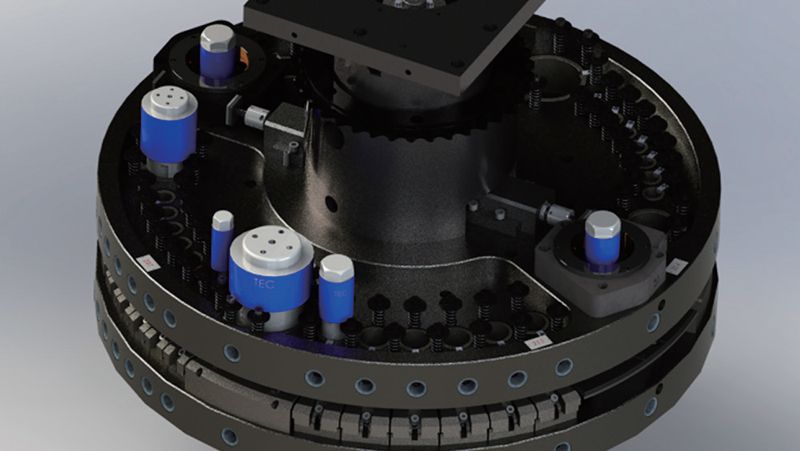

      1. Turret drive
      2. Turret drive

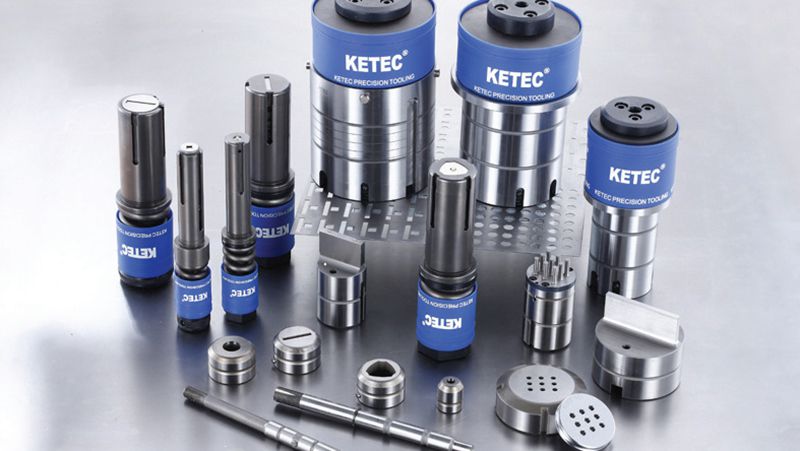

      1. Tooling
      2. Tooling

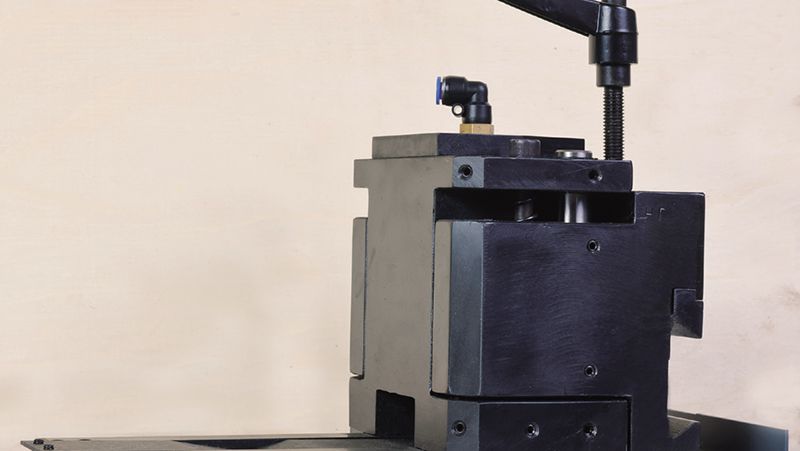

        Standard thick turret long tooling ensures good guiding performance, long service life and high precision.

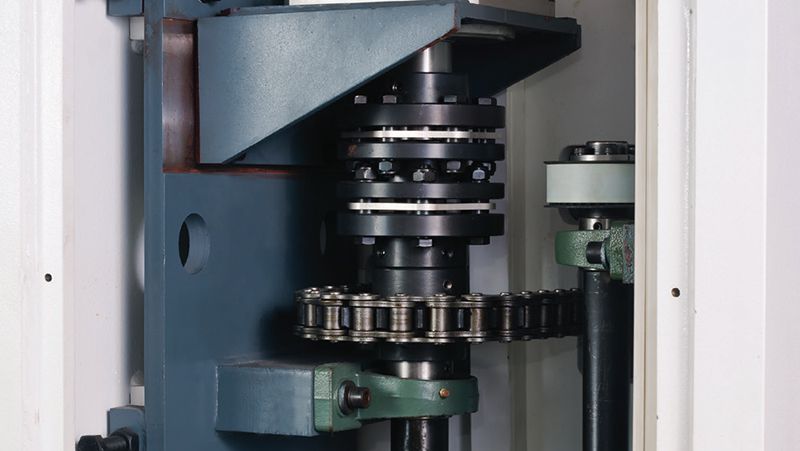

      1. Feeding mechanism
      2. Feeding mechanism

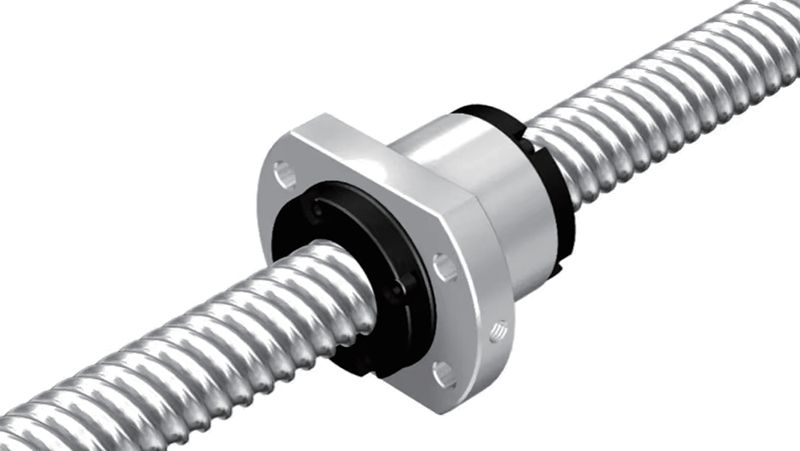

        The feeding mechanism adopts Japanese THK precision ground ball screw, large diameter linear guide and servo direct drive, ensuring high positioning accuracy, fast running speed and low noise.

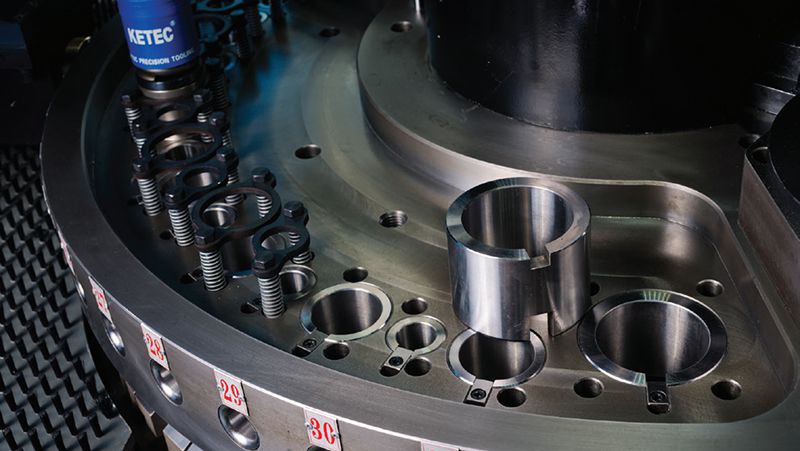

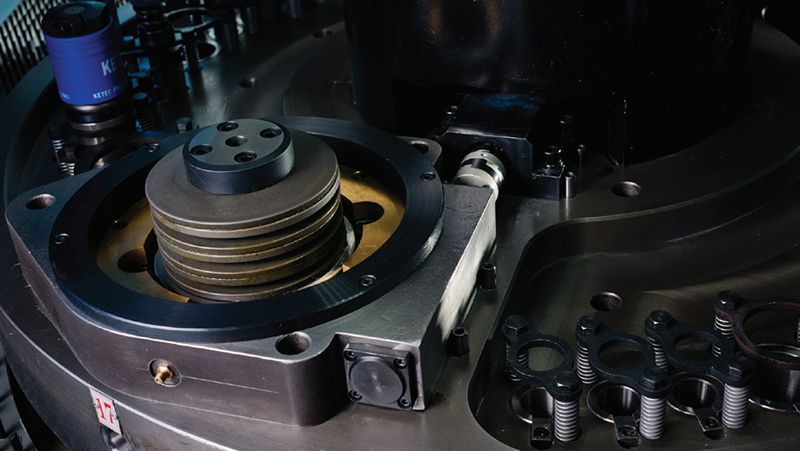

      1. Thick turret with sleeve
      2. Thick turret with sleeve
      1. Hardened tooling sleeve
      2. Hardened tooling sleeve

        The main body of the turret sleeve undergoes fine grinding after hardening, offering better wear resistance and easy replacement, thus effectively improving the service life of the tooling and the turret.

      1. Repositioning and sheet metal deformation detection device
      2. Repositioning and sheet metal deformation detection device

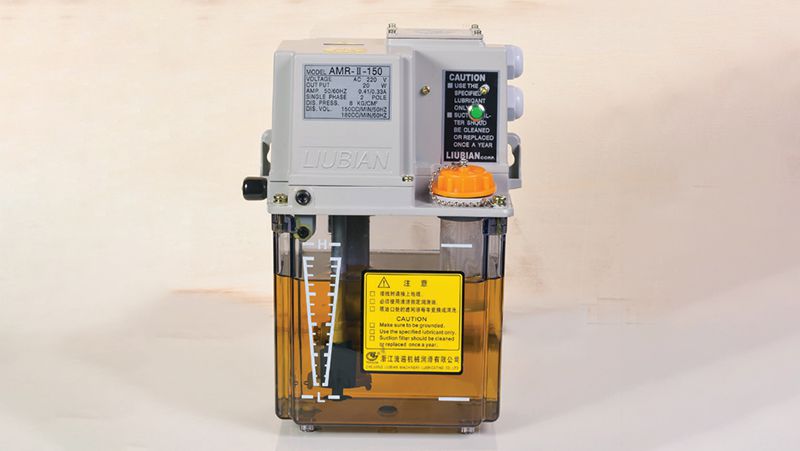

      1. Self-lubricating system
      2. Self-lubricating system

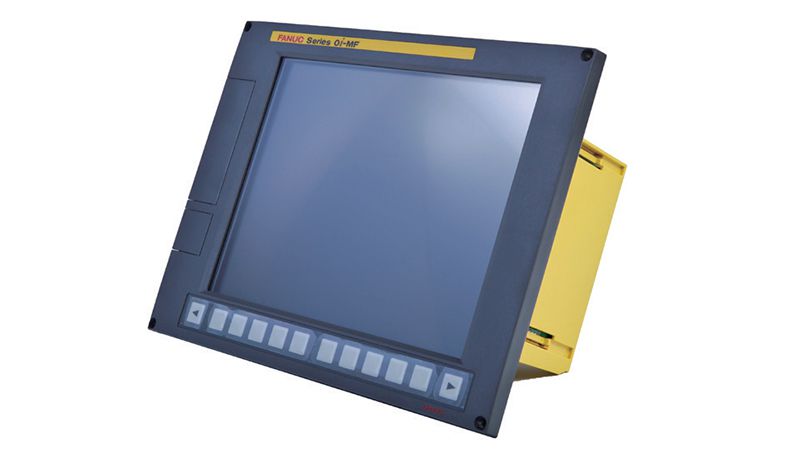

      1. Japan FANUC Oi-PF CNC system (standard)
      2. Japan FANUC Oi-PF CNC system (standard)

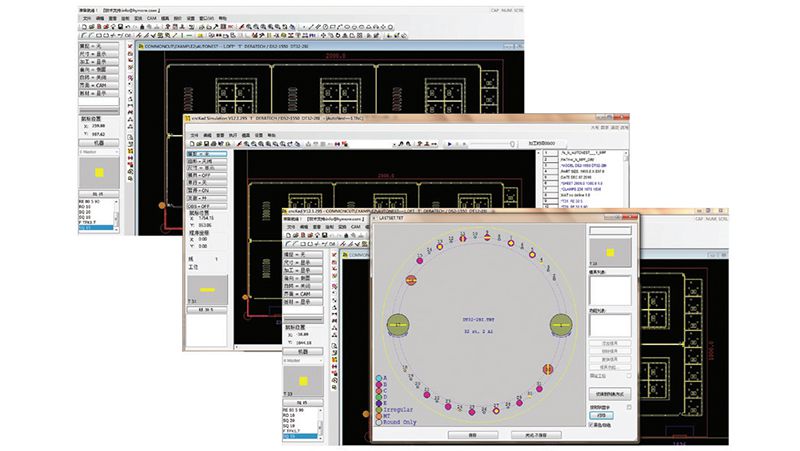

      1. Israel CNCKAD programming software
      2. Israel CNCKAD programming software
    Options
    • Germany SIEMENS 840Dsl CNC system

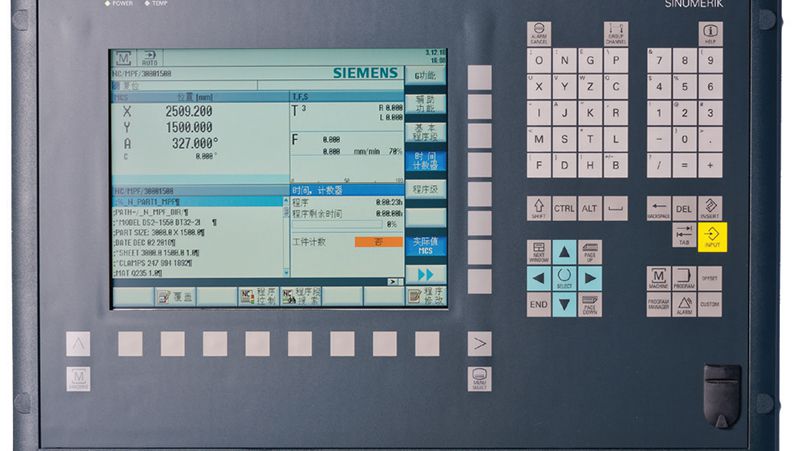

      Germany SIEMENS 840Dsl CNC system

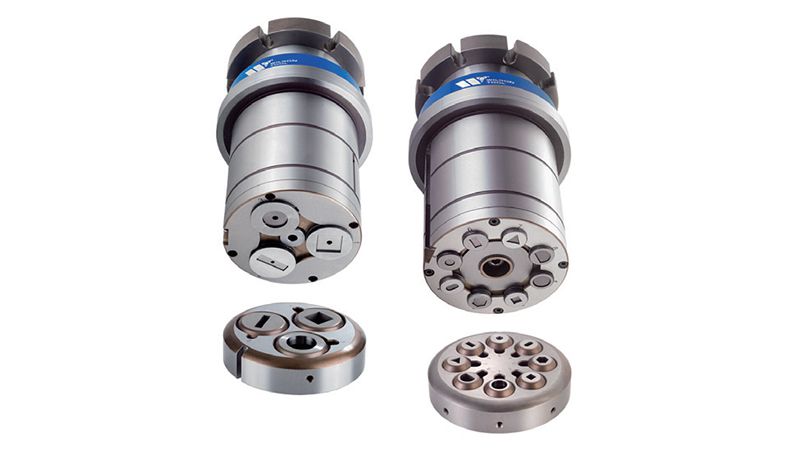

    • Multi tooling function
      Multi tooling function

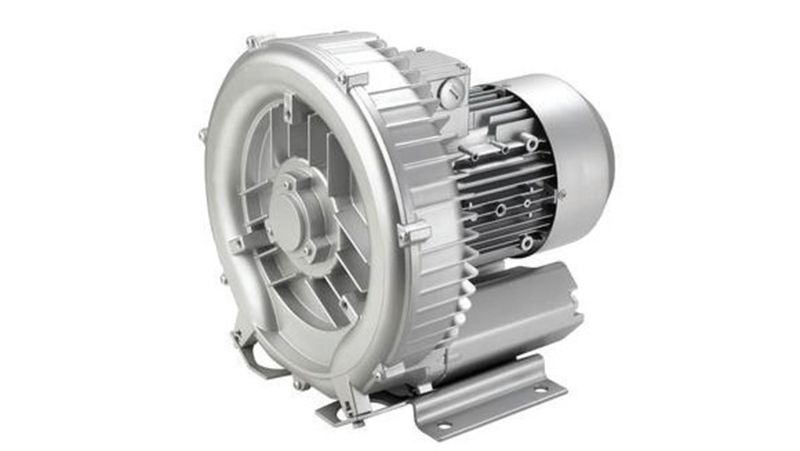

    • Vacuum waste suction installation
      Vacuum waste suction installation
    • Anti-dropping clamp device
      Anti-dropping clamp device
    • Automatic clamping device
      Automatic clamping device
    Experience precision and efficiency like never before with our state-of-the-art CNC press brake. Trust us to meet all your sheet metal bending needs and discover the difference our CNC press brake can make for your projects.
