Sheet Metal Punching and Laser Cutting Machine

CNC Punch-Laser Combination Machine

LAP Series

CNC Punch-Laser Combination Machine
  • CNC Punch-Laser Combination Machine
  • Parameters
  • Parameters
    • Sheet Metal Punching and Laser Cutting Machine

    CNC Punch-Laser Combination Machine

    LAP Series

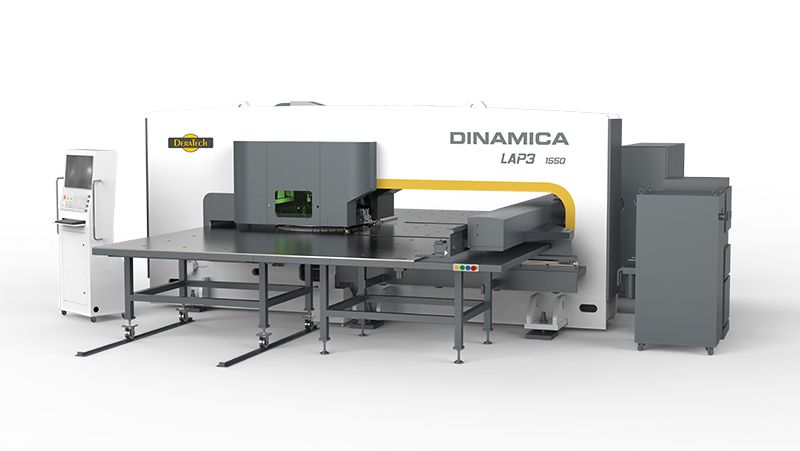

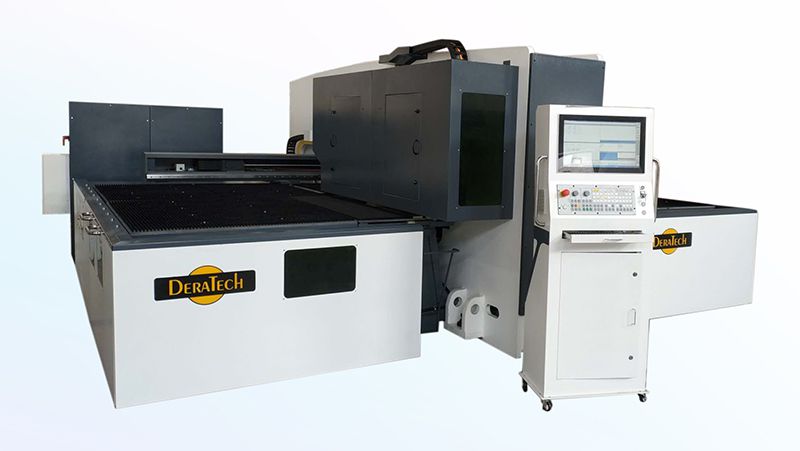

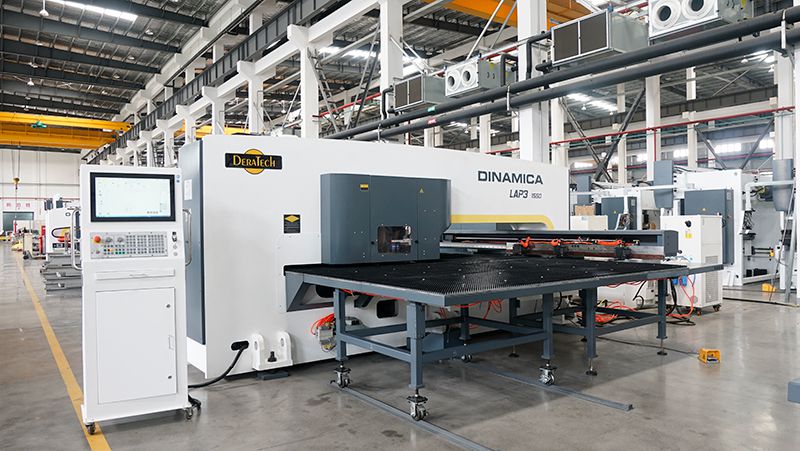

    CNC punch-laser combination machine seamlessly combines servo punching technology with 2D laser cutting technology, offering users a highly flexible sheet metal processing equipment. This machine is ideal for processing irregular contours and high value-added parts, while delivering advantages such as cost-effectiveness, compact structure, small footprint, and low power consumption.

    Download
    Request a Quote
    Parameters
    Model Unit LAP31550 LAP32050 LAP31560 LAP32060
    Processing capacity Punching force KN 300 300 300 300
    Laser power kw 1.5 1.5 1.5 1.5
    Max. sheet size (with repositioning) mm 1500×5000 2000×5000 1500×6000 2000×6000
    Max. operating Speed Punch m/min 100(X:80, Y1:60) 100(X:80, Y1:60) 85(X:60, Y1:60) 85(X:60, Y1:60)
    Laser m/min 120(X:80, Y2:90) 120(X:80, Y2:90) 110(X:60, Y2:90) 110(X:60, Y2:90)
    Punching speed (times per minute) hpm 1500 1500 1500 1500
    Number of control axis 7 7 8 8
    Punching accuracy mm ±0.1 ±0.1 ±0.1 ±0.1
    Dimensions (L×W×H) mm 8600×6600×2300 9600×6600×2300 8600×8100×2350 9600×8100×2350
    Details

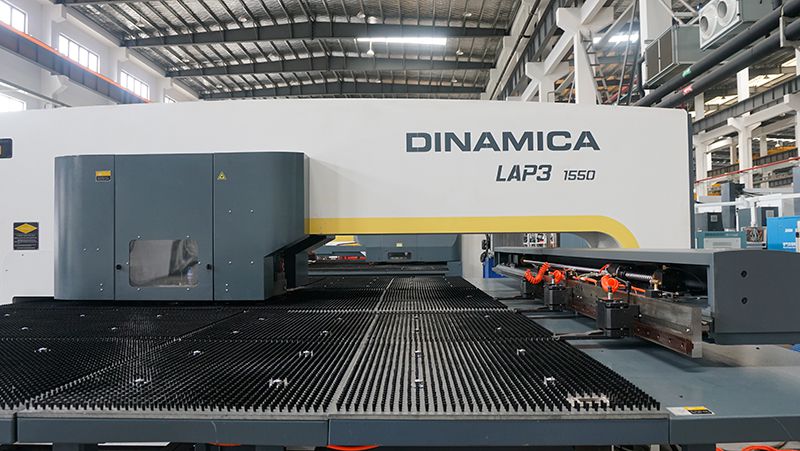

      1. Machine Frame
      2. Machine Frame

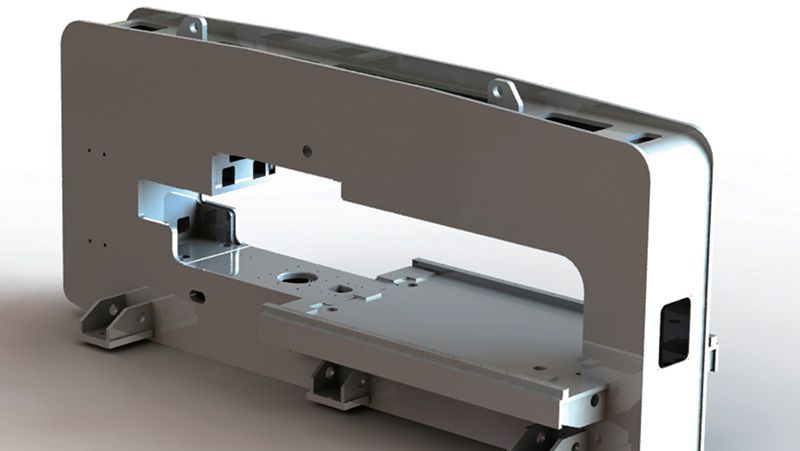

        O-type frame offers good rigidity and small deformation.

      1. Turret
      2. Turret

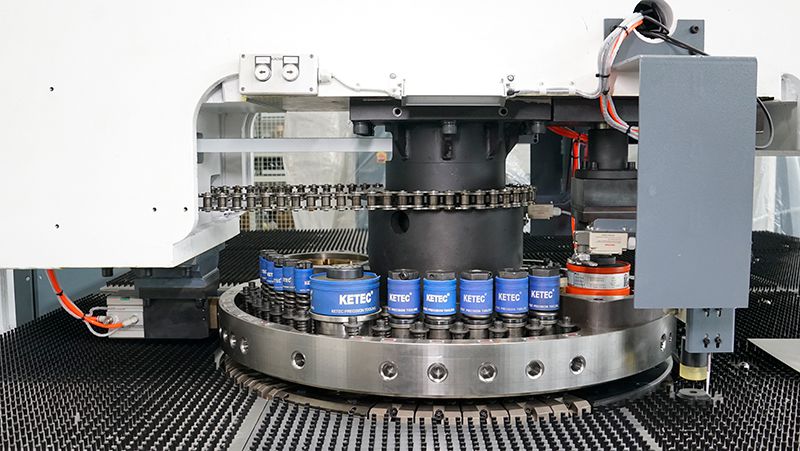

        The turret has 2 revolving positions to meet user requirements for punching and cutting at different angles. The maximum bore diameter for single processing is 88.9mm.

      1. Drive System
      2. Drive System

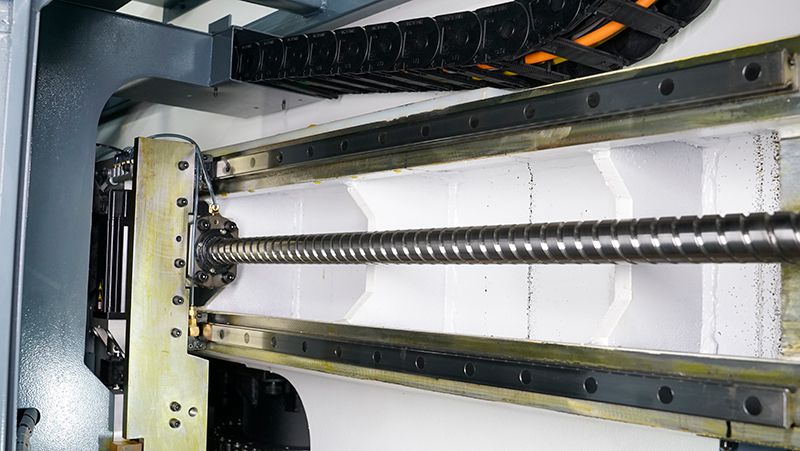

        High precision ball screw drive integrates two sets of independently driven punching axis and laser cutting axis.

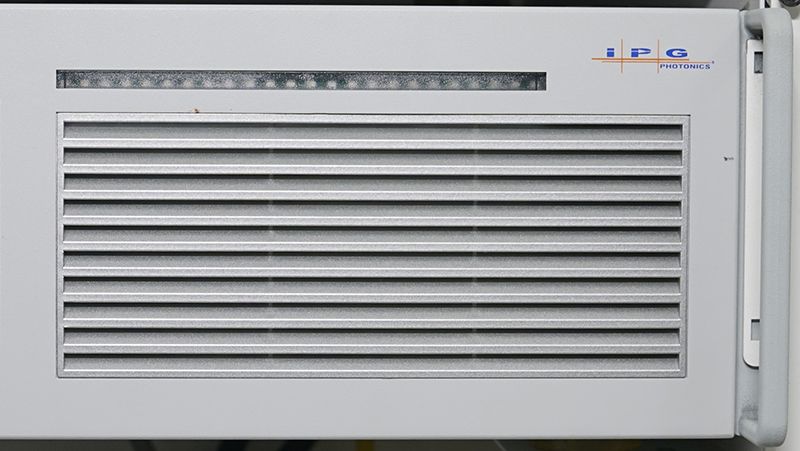

      1. Fiber Laser Source (IPG1500W)
      2. Fiber Laser Source (IPG1500W)

        The laser source comes with inherent fully-closed optical path, featuring free maintenance and a lifespan exceeding 100,000 hours.

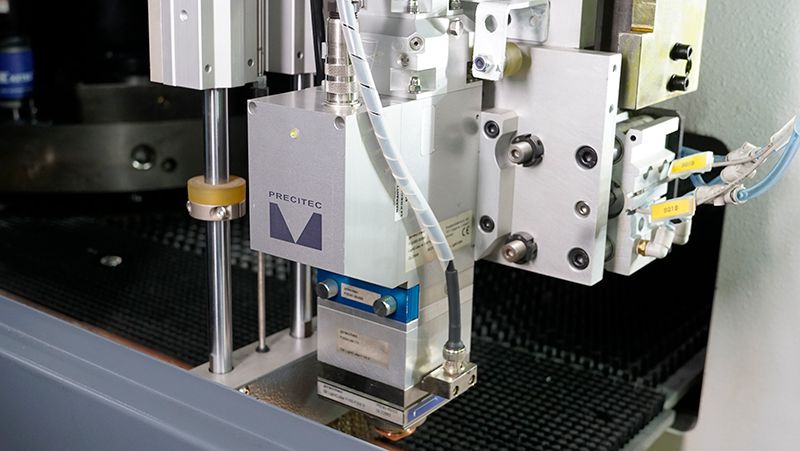

      1. Laser Cutting Head
      2. Laser Cutting Head

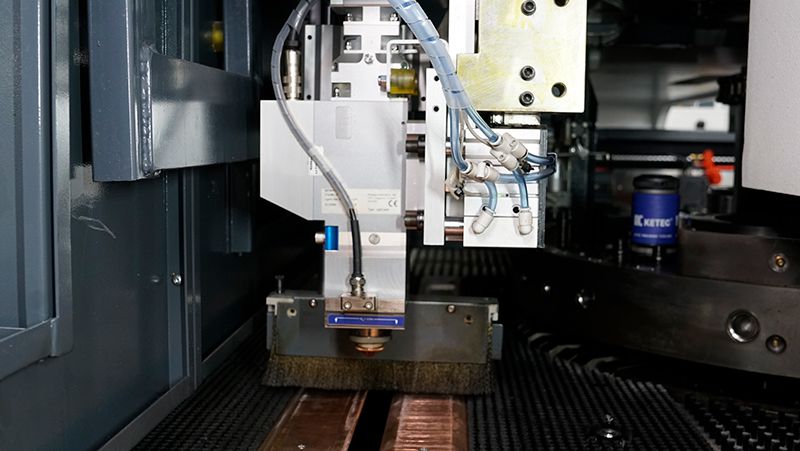

        Germany Precitec Light Cutter offers automatic focusing according to the thickness and material of the sheets.

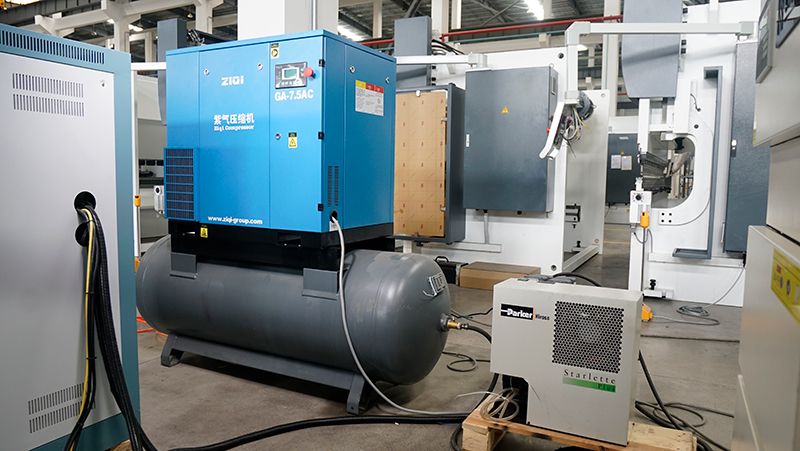

      1. Compressed Air Dryer & Filter
      2. Compressed Air Dryer & Filter

        American Parker compressed air dryer and filter is equipped, which greatly enhances the cutting quality and provides better protection for optical components.
        Note: Air compressors are provided by customers.

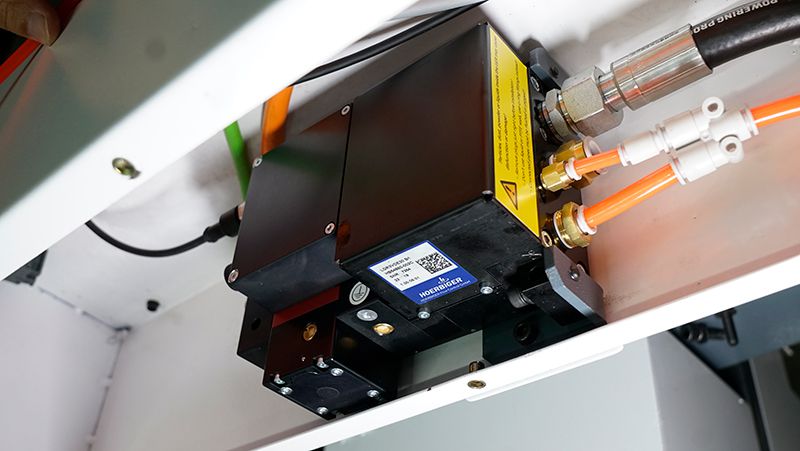

      1. HAWE Proportional Valve
      2. HAWE Proportional Valve
      1. Vibration Isolation System
      2. Vibration Isolation System
      1. Safety Protection Device
      2. Safety Protection Device

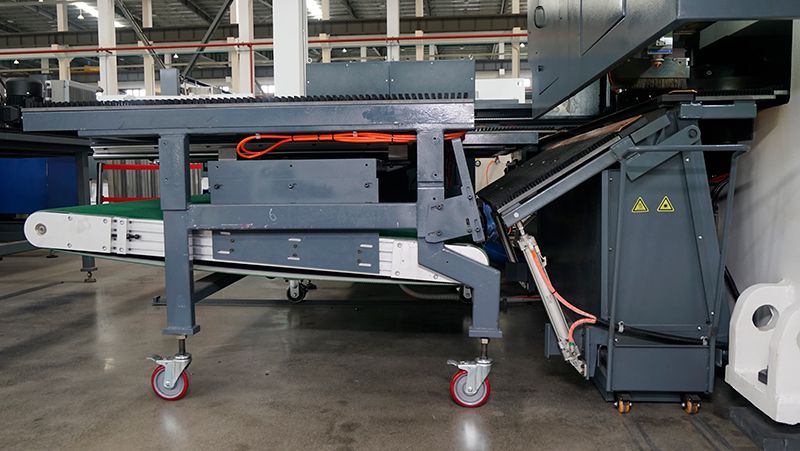

      1. Flexible Loading & Unloading Device
      2. Flexible Loading & Unloading Device

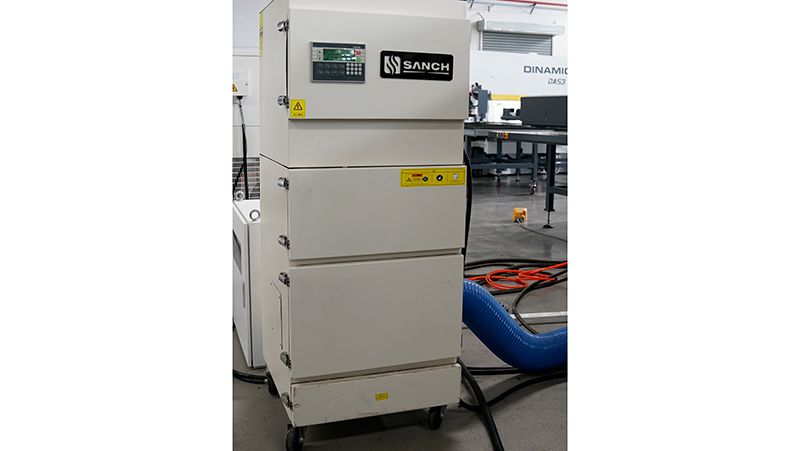

      1. Cutting Dust Removal System
      2. Cutting Dust Removal System

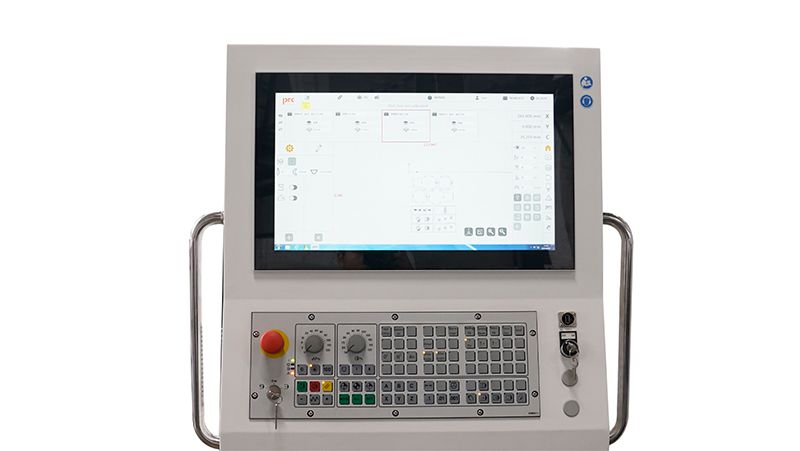

      1. CNC System and Automatic Programming Software
      2. CNC System and Automatic Programming Software

        German LTI CNC control and servo drive
    Experience precision and efficiency like never before with our state-of-the-art CNC press brake. Trust us to meet all your sheet metal bending needs and discover the difference our CNC press brake can make for your projects.
