Sheet Metal Bending Machine

Bending Center with Pressure Arm

BCI Series

Bending Center with Pressure Arm
  • Bending Center with Pressure Arm
  • Bending Center with Pressure Arm
    • Sheet Metal Bending Machine

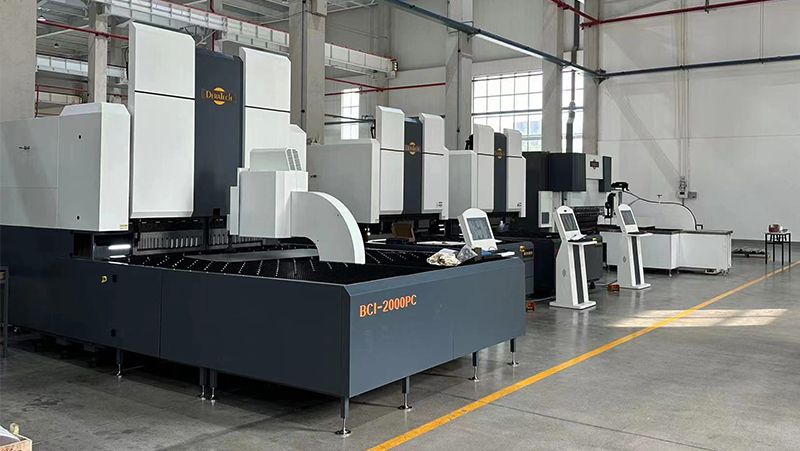

    Bending Center with Pressure Arm

    BCI Series

    BCI series bending center with pressure arm comes with advanced human-machine engineering design, industry-leading control technology, energy-saving and environmentally friendly, stable and efficient performance, and a wide processing range.

    Download
    Request a Quote
    Applications
    Applications
    Applications
    Applications

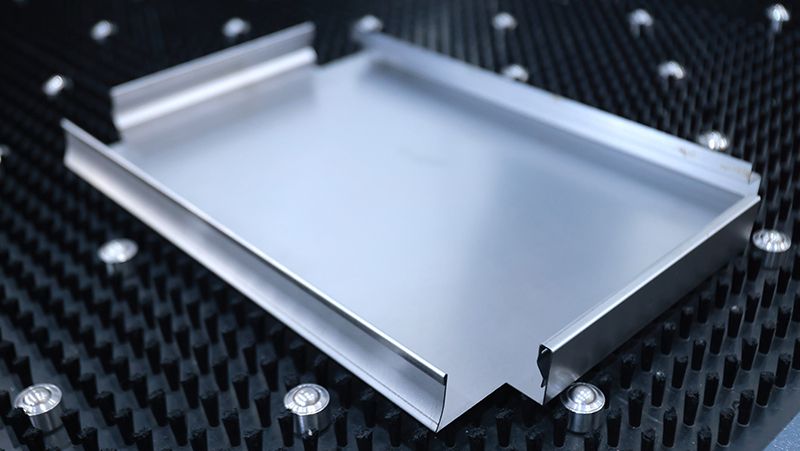

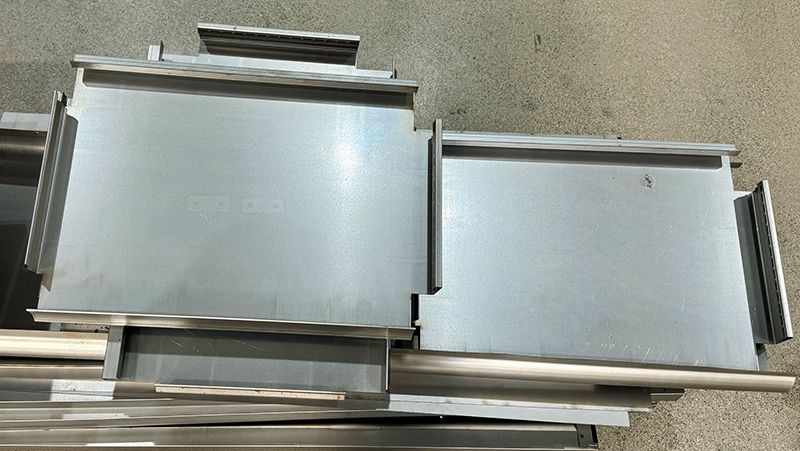

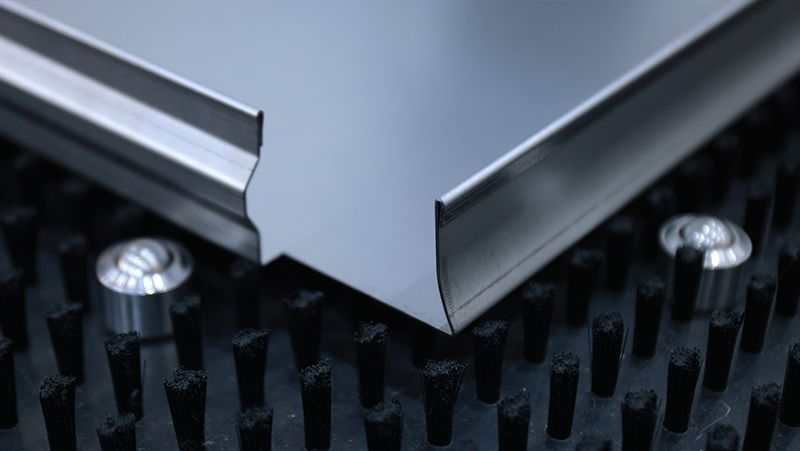

    • Electronic components manufacturing
    • Electrical metal enclosures fabrication
    • Sheet metal fabrication
    Parameters
    Model BCI-1415 BCI-2015 BCI-2515 BCI-1430 BCI-2030 BCI-2530
    Max. bending size(L*W) (mm) 1400×1400 2000×1500 2500×1500 1400×1400 2000×1500 2500×1500
    Min. double side forming size (mm) 140 140 140 140 140 140
    Min. four side forming size (mm) 140×190 140×190 140×190 140×190 140×190 140×190
    Max. bending height (mm) 170 170 170 170 170 170
    Max. panel thickness (mm) Carbon steel panel (UTS 410 N/mm2) 1.5 1.5 1.5 3 3 3
    304 stainless steel panel (UTS 515 N/mm2) 1.2 1.2 1.2 2 2 2
    201 stainless steel panel (UTS 520 N/mm2) 1 1 1 1.7 1.7 1.7
    Aluminum panel (UTS 265 N/mm2) 2 2 2 3 3 3
    Min. panel thickness (mm) 0.35 0.35 0.35 0.35 0.35 0.35
    Peak power (kW) 35 39 58 40 72 72
    Average power (kW) 1.8 2.5 2.9 1.8 2.6 2.6
    Bending angle (°) ±150 ±150 ±150 ±150 ±150 ±150
    Servo axis 15 15 15 15 15 15
    Dimensions(L*W*H) (mm) 4400×1910×2900 5150×2700×3350 5750×3150×3410 4400×1910×2900 5150×2700×3350 5750×3150×3400
    Machine weight (ton) 12 16 22 13 16 22
    Details

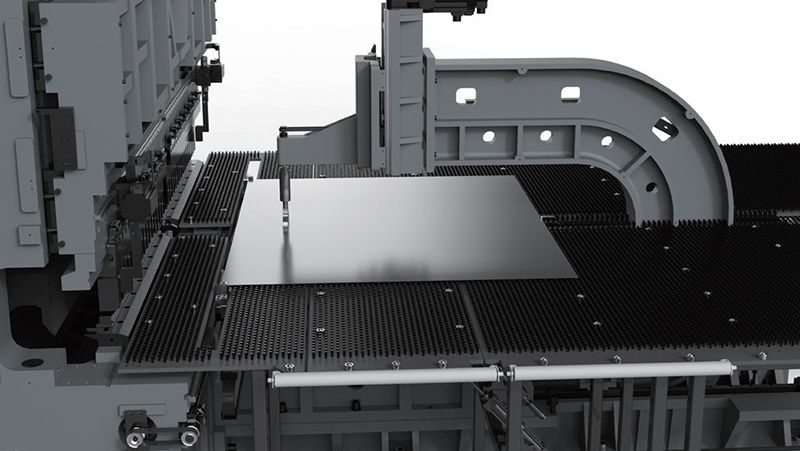

      1. Omni-directional workpiece positioning system
      2. Omni-directional workpiece positioning system

        The machine adopts Y-axis dual-lift five-point automatic clamping and positioning for material feeding.

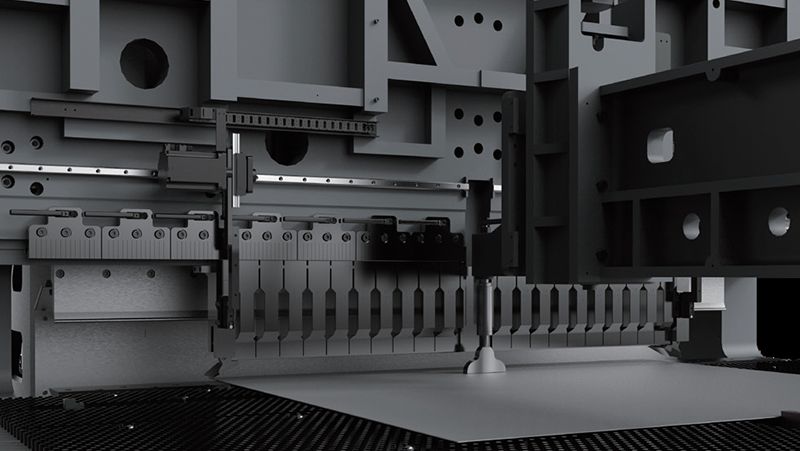

      1. Power hinge knife (optional)
      2. Power hinge knife (optional)

        Effectively prevent interference and scratching on the surface of workpiece.
