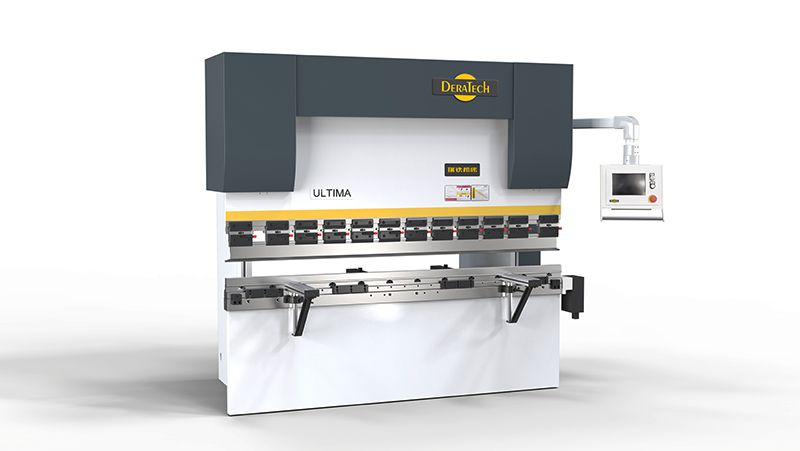

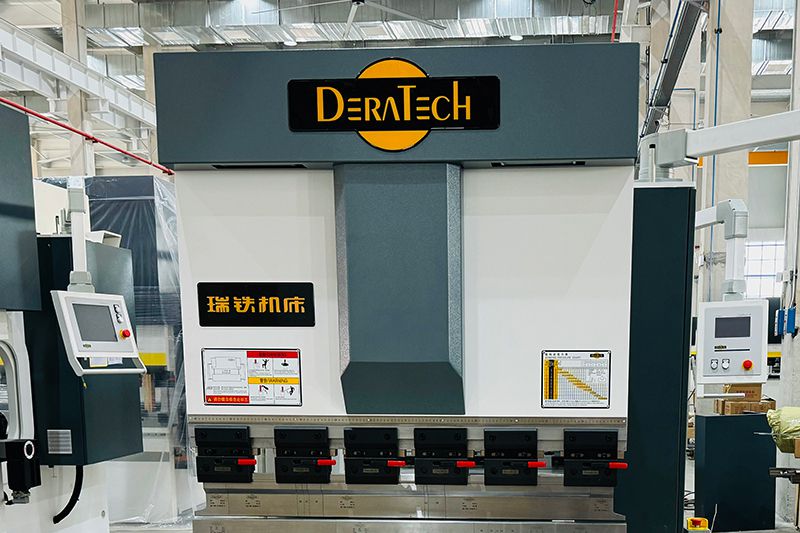

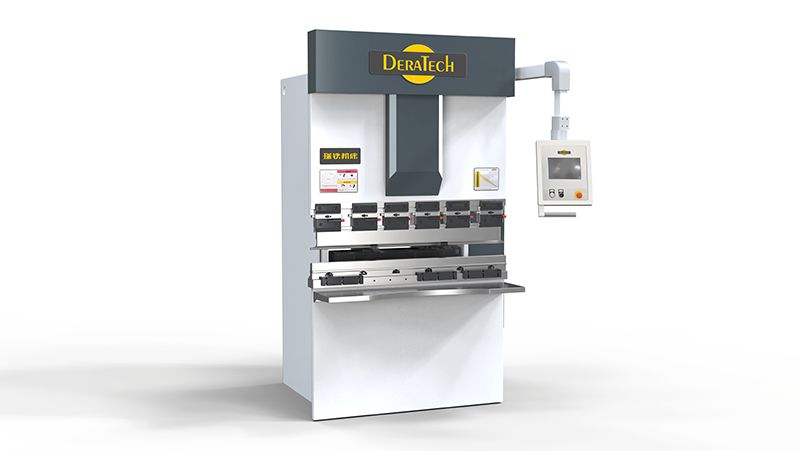

CNC Double Servo Hybrid Press Brake

CBB-D Series

Download

Request a Quote

Sheet Metal Bending Machine

CNC Double Servo Hybrid Press Brake

CBB-D Series

High efficiency, and fast speed: By using two independent servo motors to control the slide block and advanced hydraulic circuitry, the working speed of the slide block is increased, reducing response time and improving efficiency.
Energy-saving: With dual servos and dual oil tanks, it saves approximately 50% of oil consumption compared to traditional hydraulic bending machines, while also prolonging the usage time of hydraulic oil.
Low noise: The use of dual servos significantly reduces noise during production.

CBB-35/1250D
Hybrid Press Brake
CBB-70/2500D
Hybrid Press Brake

Applications

Processing of aluminum curtain walls
Stainless steel bending processing
Enclosure/Cabinet bending processing
Kitchenware bending
Processing of agricultural machinery components
Vehicle maintenance
Engineering machinery component processing
Elevator component processing
Processing of small home appliances (including lighting fixtures)

All industries that require sheet metal bending processing.
Combine with a robot (automatic bending cell) for intelligent factories to obtain higher efficiency.

Details

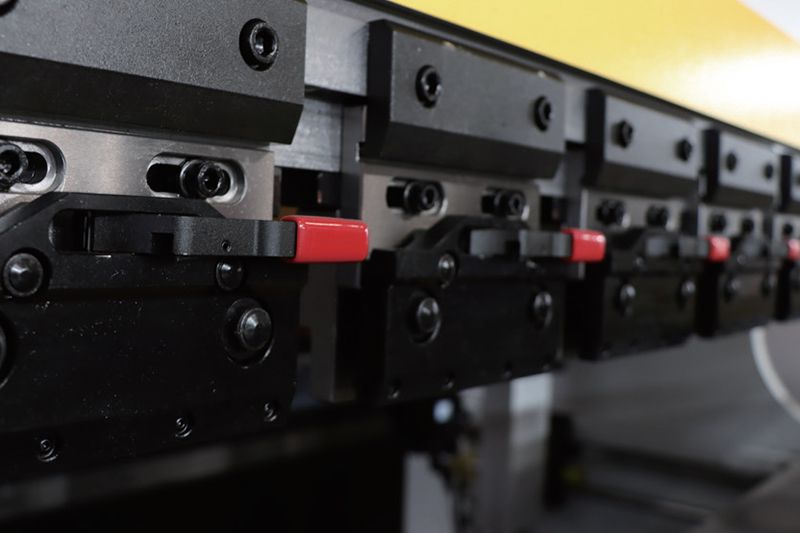

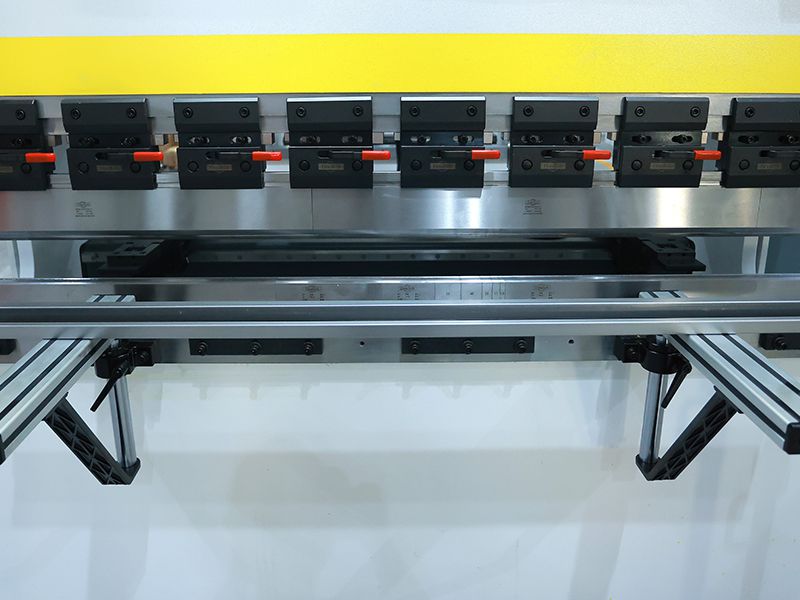

2. Vertical Loading and Unloading Quick Clamps

  Equipped with precision quick clamps, it effectively reduces tooling changeover time, improves production efficiency, and has a higher load-bearing capacity.

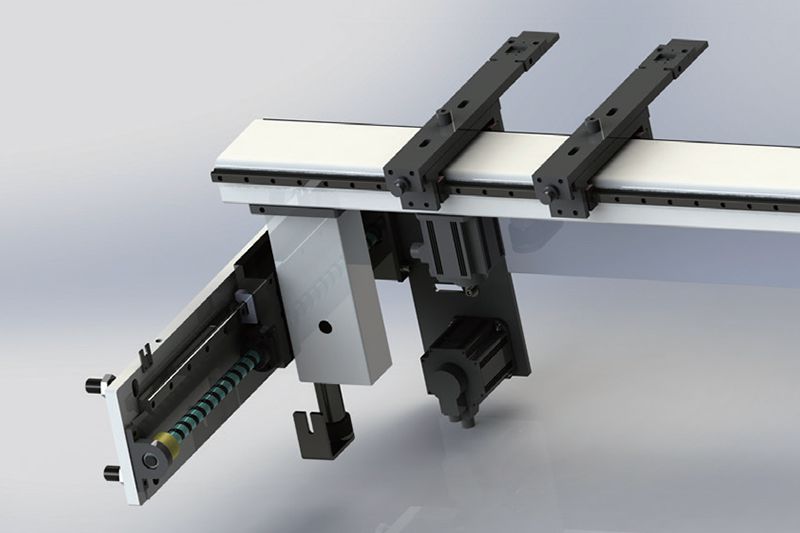

2. Precise and stable backgauge structure

  Dual linear guide rail structure ensures the positioning accuracy. Multi-level stop design increases the positioning range.

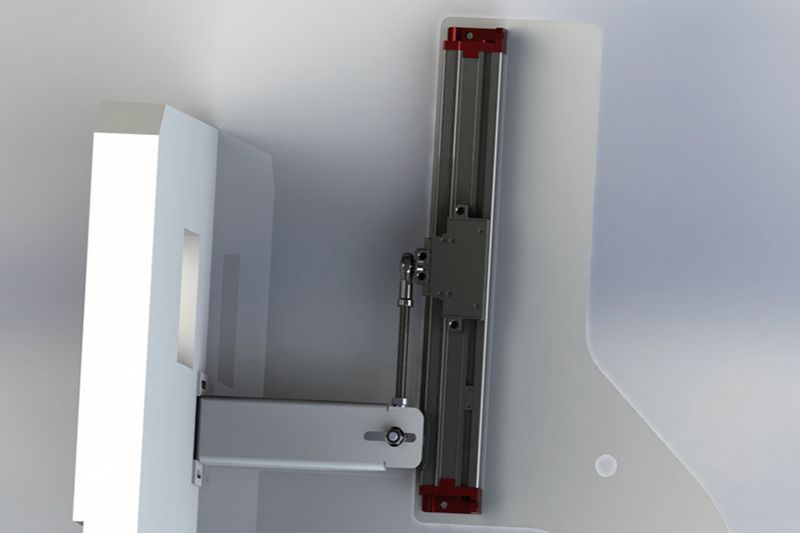

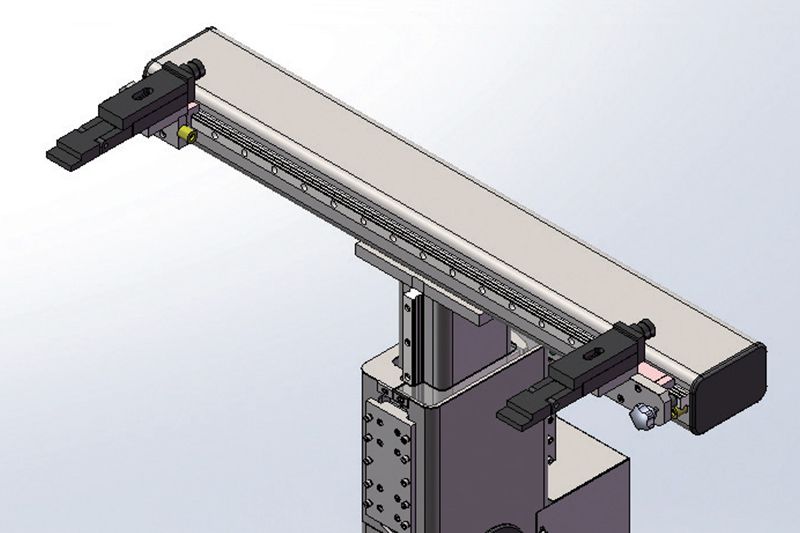

2. Easy Backgauge structure

  Standard configuration for 30-50 ton model
2. Throat deformation compensation device

  Ensures bending accuracy and effectively prevents collision interference with non-standard workpieces through the detection unit.

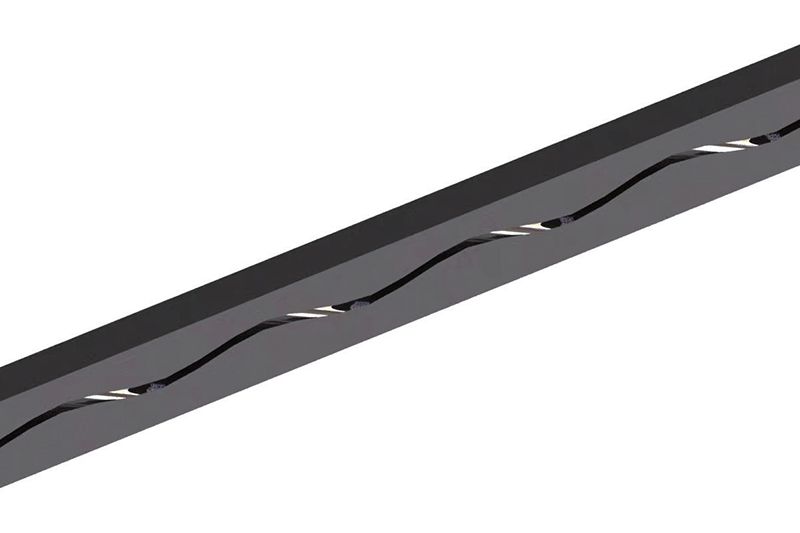

2. Mechanical compensation device

  Equipped with a high-precision wedge compensation system controlled by a CNC system, it provides precise compensation to ensure stable bending accuracy.

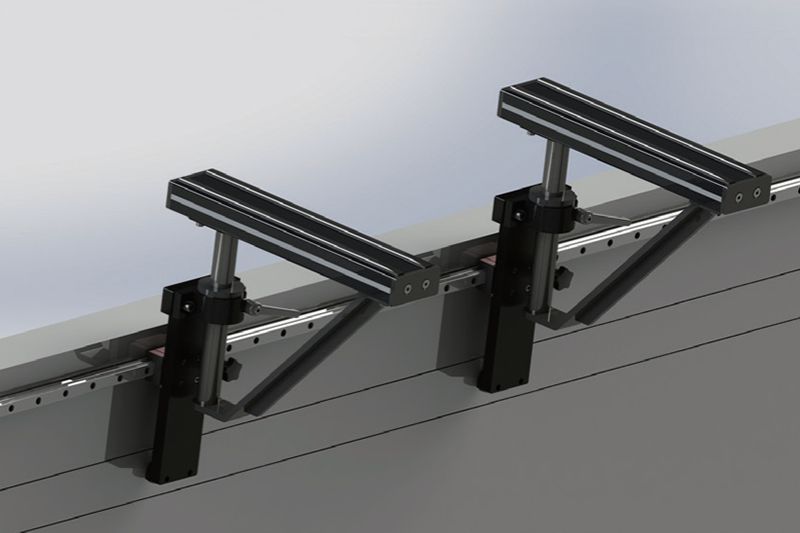

2. Mobile front pallet

  It moves along the linear guide rail and can be stopped at any position, assisting in the bending work to make the process comfortable and efficient.

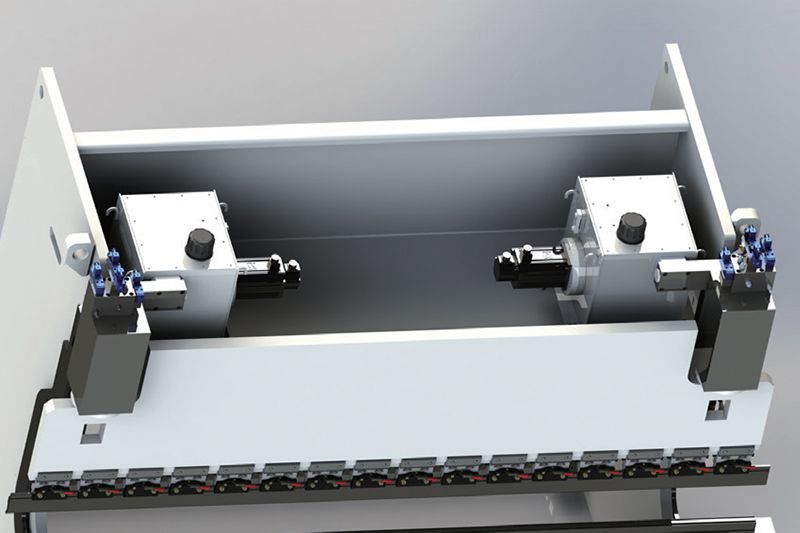

2. Dual-Servo Oil-Electric Hybrid Technology

  (Patent No.: 2017112435900)
  The dual servo oil-electric hybrid system operates quickly and smoothly, with a response speed that surpasses proportional valve control. This system also features low noise and high efficiency.

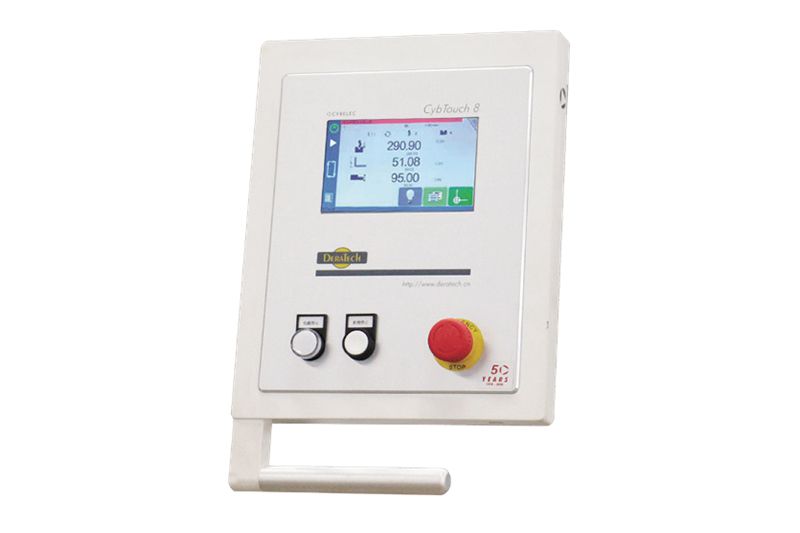

2. CNC system

  Switzerland CYBELEC CybTouch 8
  Switzerland Cybelec CT8 (standard on CBB-D models)

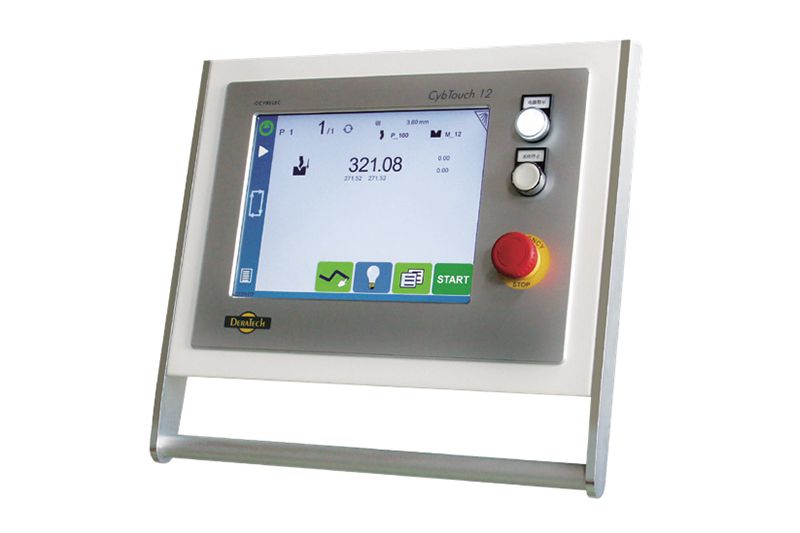

2. CNC system

  Switzerland CYBELEC CybTouch 12
  Switzerland Cybelec CT12 (standard on UBB-D models)

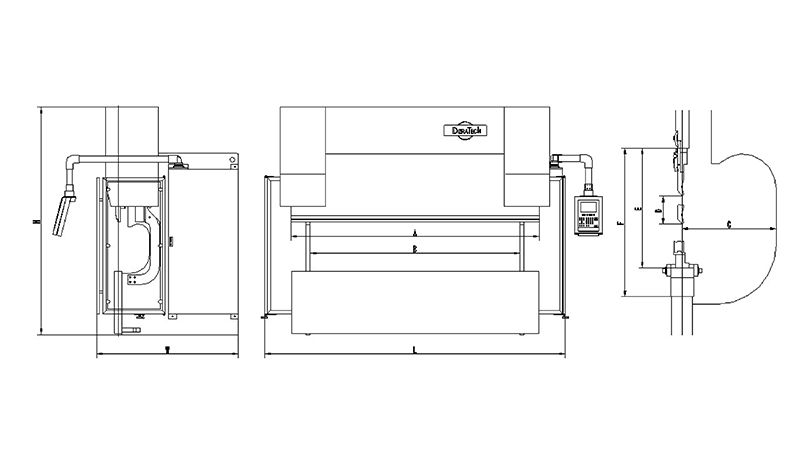

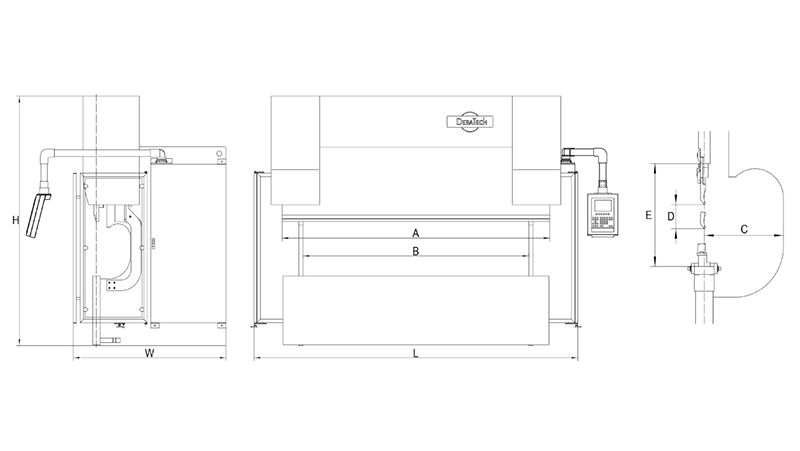

Model	Force (kN)	A	B	C	D	E	Main power (kW)	Oil volume (L)	X axis stroke (mm)	R axis stroke (mm)	Max. speed (mm/s)			Dimensions (LWH) (mm)			Weight (kg)
Model	Force (kN)	Max. bending length (mm)	Distance between uprights (mm)	Throat depth (mm)	Cylinder stroke (mm)	Opening height (mm)	Main power (kW)	Oil volume (L)	X axis stroke (mm)	R axis stroke (mm)	Approaching speed	Working speed	Returning speed	Dimensions (LWH) (mm)			Weight (kg)
CBB-35/1250D★	350	1250	900	200	120	385	3.7	70	450	100	250	0-20	250	1650	1210	2245	2900
CBB-50/1650D★	500	1650	1200	300	120	385	2 ×3.7	2 ×70	450	100	250	0-20	250	2180	1340	2385	4300
CBB-60/2050D★	600	2050	1500	300	120	385	2 ×3.7	2 ×70	450	100	250	0-20	250	2680	1340	2385	4600
CBB-70/2500D	700	2500	2000	300	120	400	2 ×3.7	2 ×70	450	200	250	0-20	250	2990	1370	2385	5900
