Metal Cutting Machine

CNC Fiber Laser Cutting Machine

Future A Series

Future A series CNC fiber laser cutting machine is a high-tech metal cutting equipment that integrates laser technology, CNC technology, and precision mechanical technology. The cutter features a top-notch fiber laser with excellent electro-optical conversion efficiency, providing consistent power and optimal beam quality. Equipped with an auto-focusing fiber cutting head and a flexible and efficient exchange table, it enables the workpiece to achieve new levels of shape and quality while minimizing the production preparation time.

Capability

Laser source: 1500W, 2000W, 3000W, 4000W, 6000W

Applications
Applications
Applications
  • Processing of aluminum curtain walls
  • Stainless steel bending processing
  • Enclosure/Cabinet bending processing
  • Kitchenware bending
  • Automotive parts cutting
  • Engine components cutting
  • Cutting for construction & architecture
Parameters
Model FA3015 FA4015 FA4020 FA6020 FA6025 FA6020 FA6025
Cutting range (mm) 3000*1500 4000*1500 4000*2000 6000*2000 6000*2500 6000*2000 6000*2500
X axis stroke (mm) 1550 1550 2050 2050 2550 2050 2550
Y axis stroke (mm) 3050 4050 4050 6050 6050 6050 6050
Z axis stroke (mm) 300
X/Y axis positioning accuracy (mm/m) ±0.05 ±0.03
X/Y axis repeat positioning accuracy (mm/m) ±0.03 ±0.02
Max. positioning speed of X/Y axis (m/min) 100
Max. acceleration of X/Y axis(g) 1.1
Laser cutting source power (W) ≤6000
Details

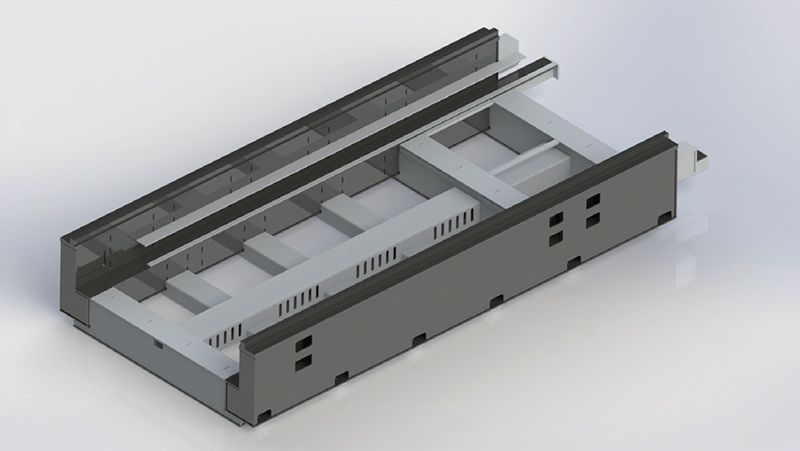

    1. High-strength main frame
    2. High-strength main frame

      The machine adopts an integral gantry structure with a high-strength steel welded bed, which undergoes annealing and stress relief treatment, ensuring high rigidity and minimal deformation.
      A dust removal device is equipped in the cutting area to remove dust and debris.
      A waste collection box is arranged at the bottom of the bed for centralized cleaning.

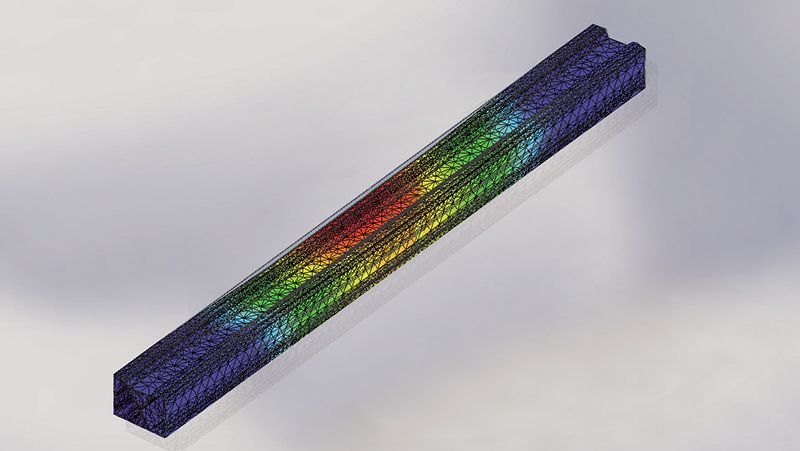

    1. Aviation-grade specially formed aluminum beam
    2. Aviation-grade specially formed aluminum beam

      Adopting a lightweight design concept, it delivers good dynamic performance. The beam base and Z-axis slide plate features a high-strength cast aluminum integrated molding design, offering light weight, compact structure, high precision, and quick response.

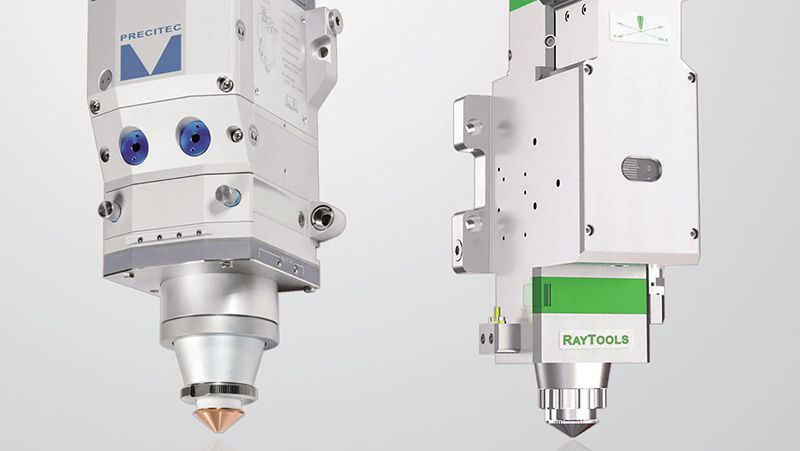

    1. Precise fiber laser cutting head
    2. Precise fiber laser cutting head

      German Precitec/Swiss RayTools automatic focusing cutting head

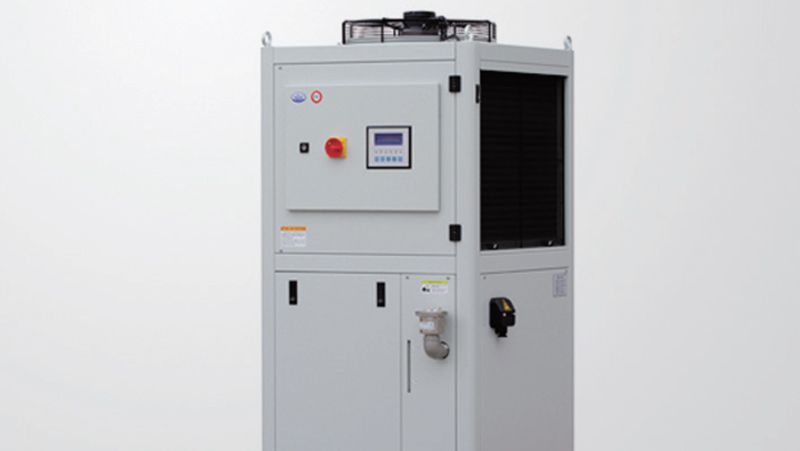

    1. Dual Temperature and dual control water cooling System
    2. Dual Temperature and dual control water cooling System

      Comes with high-quality brand refrigeration components, ensuring real time warning feedback and more efficient cooling.

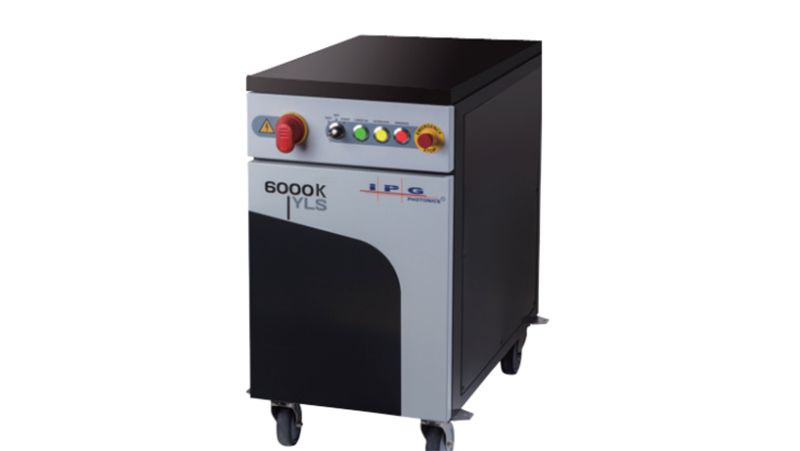

    1. Fiber laser source
    2. Fiber laser source

      Optionally equipped with German IPG/ Chuangxin MAX and other latest generation of fiber lasers.

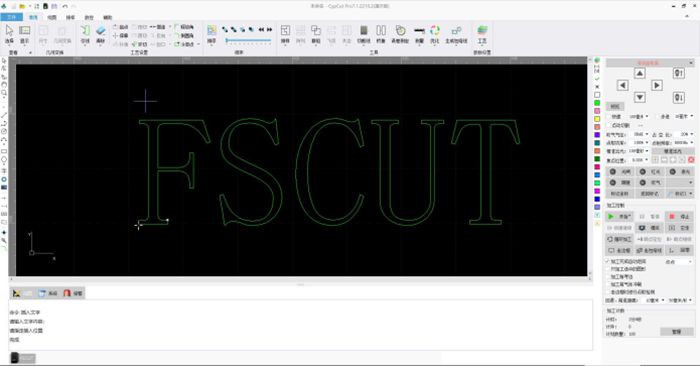

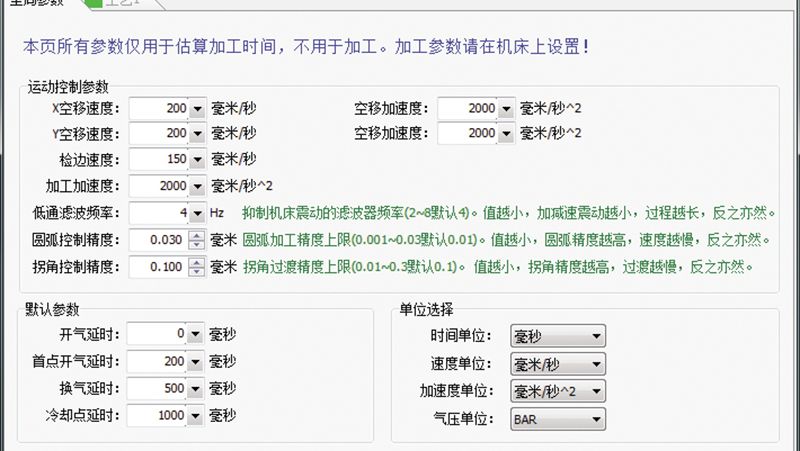

    1. FSCUT laser cutting machine special CNC system
    2. FSCUT laser cutting machine special CNC system

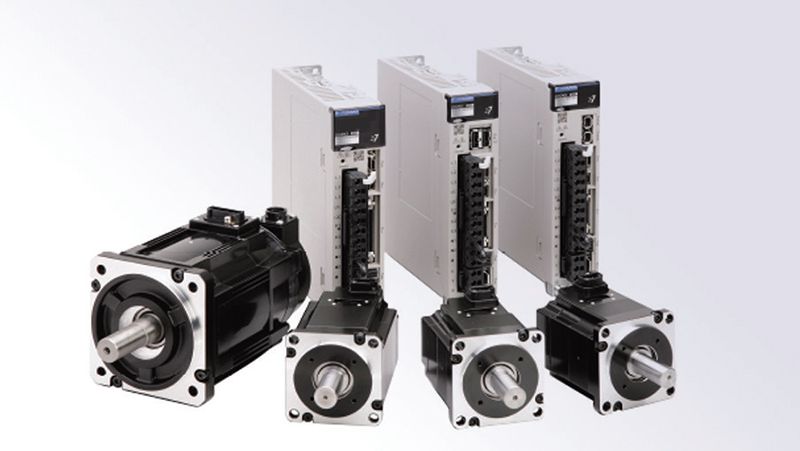

    1. Precise AC servo drive unit
    2. Precise AC servo drive unit

      A full set of servo motors improves the speed and accuracy of the cutting machine.

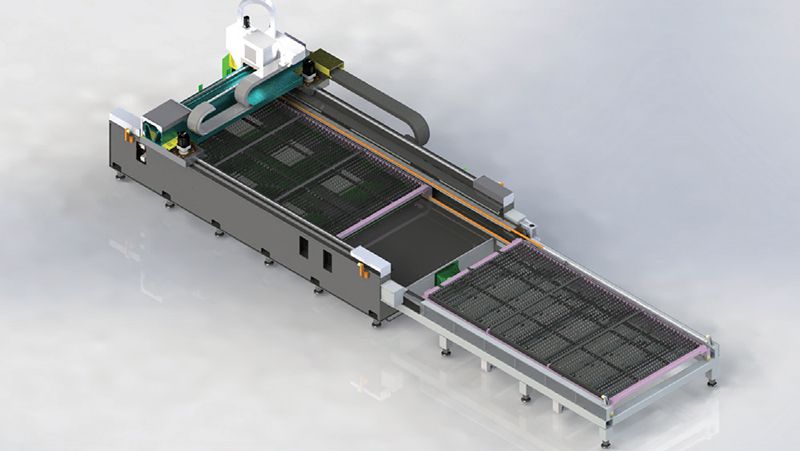

    1. Double Exchange table
    2. Double Exchange table

      The exchange worktable is constructed with welded steel structure, ensuring excellent stability and higher load-bearing capacity.

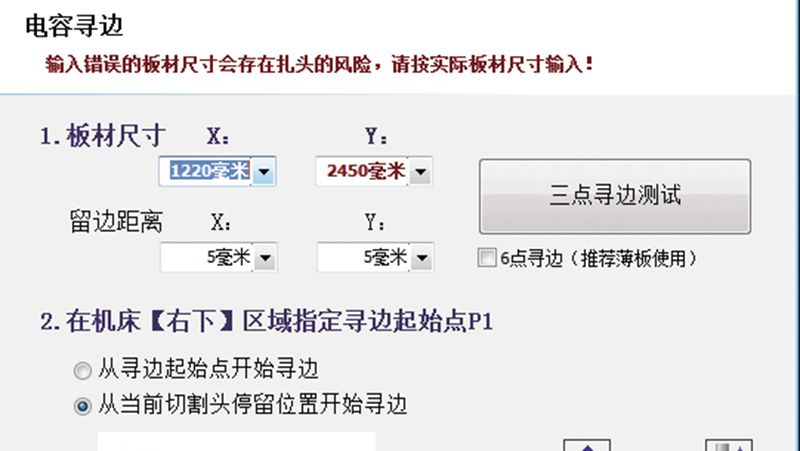

    1. Automatic edge finding function
    2. Automatic edge finding function

      The laser cutting head is equipped with a modular integrated sensor that automatically detects the sheet edge. This one-button operation is fast and convenient, eliminating the need for personnel to participate in adjustments, thereby enhancing machine efficiency.

    1. Cutting auxiliary gas pressure control
    2. Cutting auxiliary gas pressure control

      This machine allows for real-time adjustment of the cutting auxiliary gas pressure and features automatic switching functions for different types of auxiliary gases.

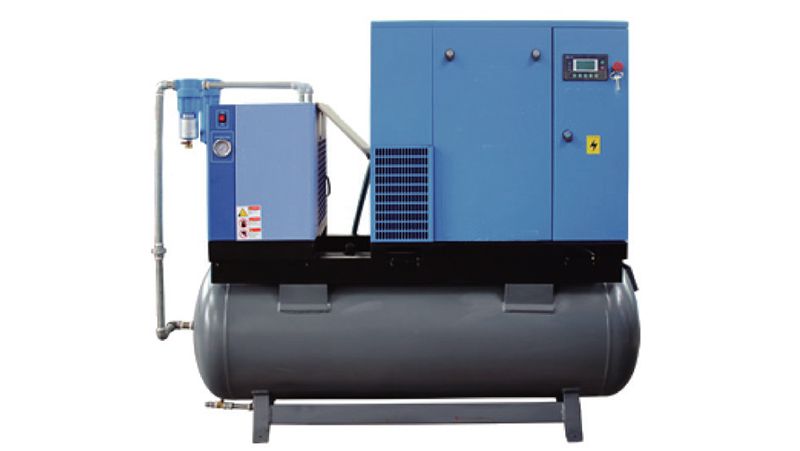

    1. Air cutting function
    2. Air cutting function

      Air compressors, refrigerated air dryers, and filters are essential for ensuring that the air meets cutting requirements and significantly reducing cutting costs.

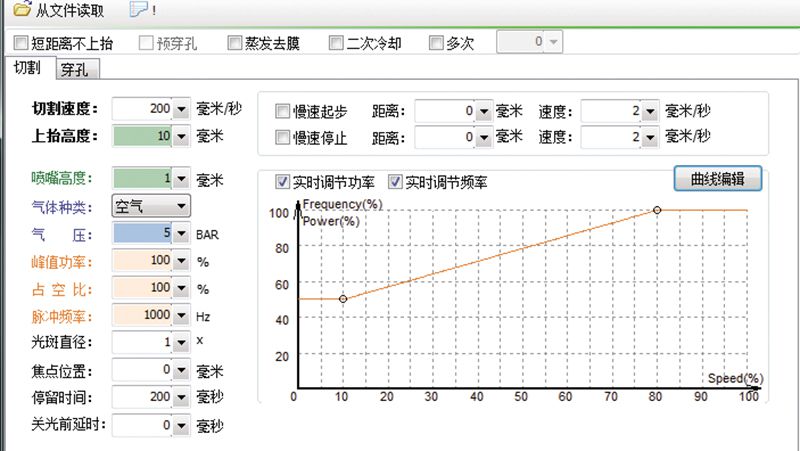

    1. Laser power control
    2. Laser power control

      During the cutting process, this machine automatically detects changes in path, speed, and other parameters, and adjusts the laser output power in real-time to provide optimal beam quality. This feature helps to avoid overburning when cutting small contours or sharp corners, resulting in the best possible cutting effect.
Related Products

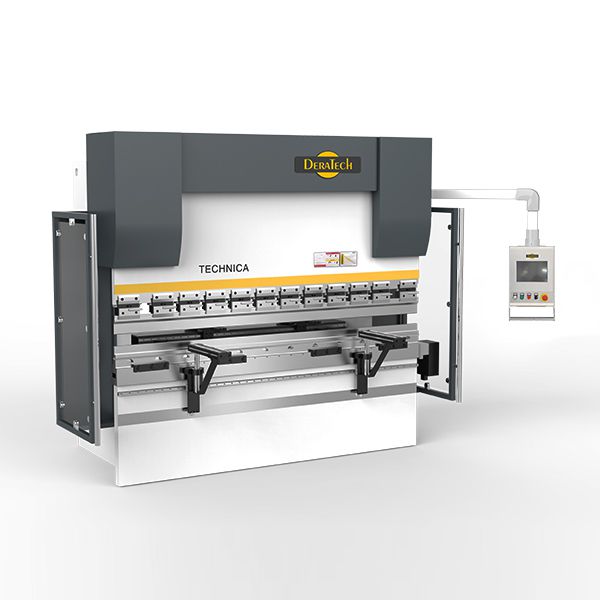

Experience precision and efficiency like never before with our state-of-the-art CNC press brake. Trust us to meet all your sheet metal bending needs and discover the difference our CNC press brake can make for your projects.
