Metal Cutting Machine

CNC Fiber Laser Cutting Machine

Future H Series

CNC Fiber Laser Cutting Machine
Download
Request a Quote
Metal Cutting Machine

CNC Fiber Laser Cutting Machine

Future H Series

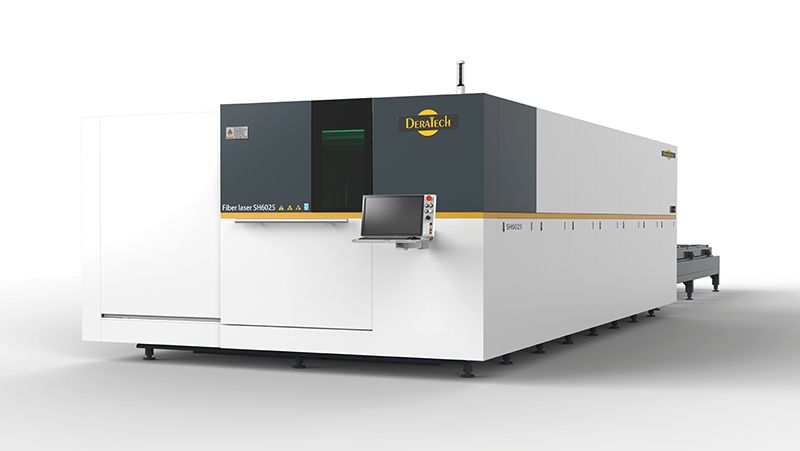

Future H series CNC fiber laser cutting machine is designed for high-power cutting applications, enabling ultra-high-speed cutting of thin sheets and efficient processing of medium-thick plates. This metal cutting machine excels in the processing of various metal materials.

Capability

Laser source: 12000W, 15000W, 20000W

Applications
  • Metal roofing panel cutting
  • Auto body fabrication process
  • Heavy machinery manufacturing
  • Heavy duty pipe cutting
  • Enclosure/Cabinet bending processing
  • Kitchenware bending
  • Processing of agricultural machinery components
  • Vehicle maintenance
Parameters
Model FH3015 FH4020 FH6025 FH8025 FH12025
Cutting range (mm) 3000*1500 4000*2000 6000*2500 8000*2500 12500*2500
X axis stroke (mm) 1550 2050 2550 2500 2500
Y axis stroke (mm) 3050 4050 6050 8050 12050
Z axis stroke (mm) 300
X/Y axis positioning accuracy (mm/m) ±0.05
X/Y axis repeat positioning accuracy (mm/m) ±0.03
Max. positioning speed of X/Y axis (m/min) 110
Max. acceleration of X/Y axis (g) 1.2
Laser cutting source power (W) ≤20000
Details

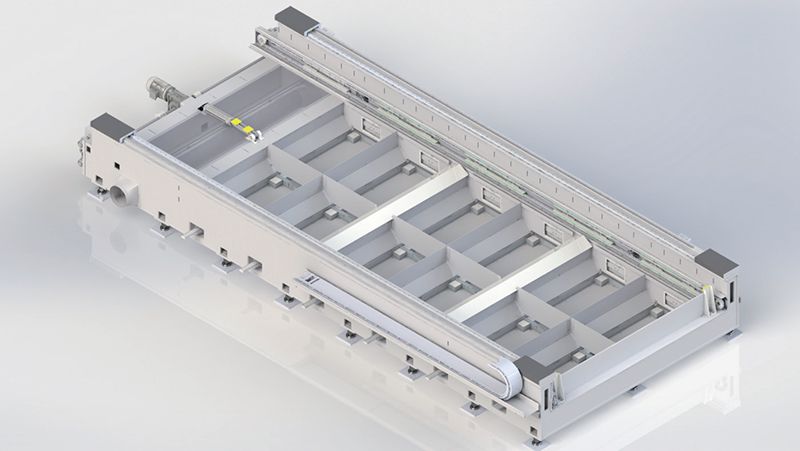

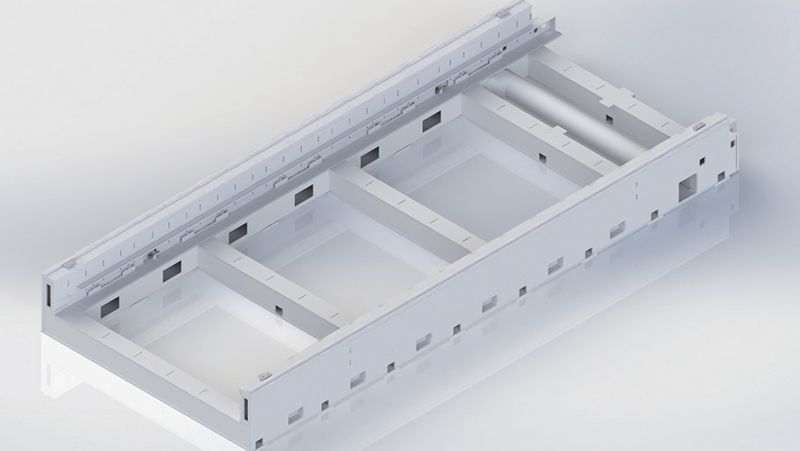

    1. Semi-hollow structure bed (Patented)
    2. Semi-hollow structure bed (Patented)

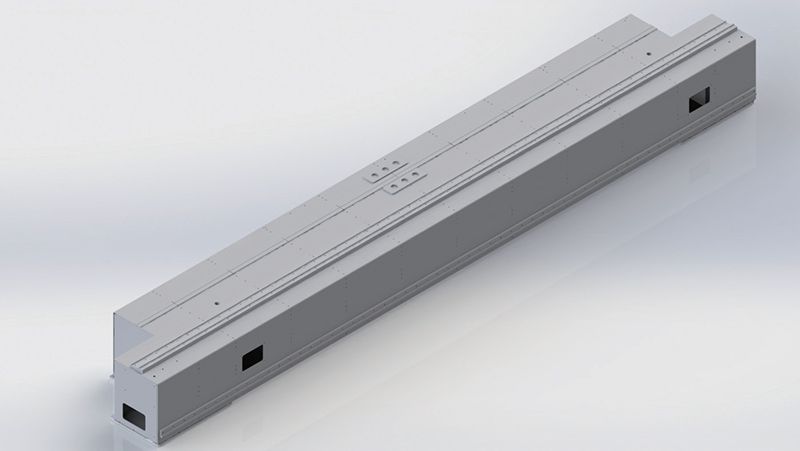

    1. High rigidity, lightweight welded steel beam
    2. High rigidity, lightweight welded steel beam

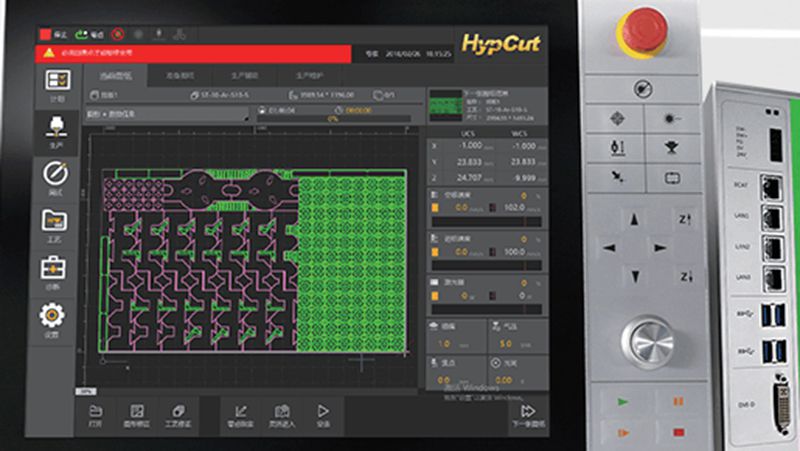

    1. User-friendly, easy-to-operate BOCHU FSCUT8000 CNC System
    2. User-friendly, easy-to-operate BOCHU FSCUT8000 CNC System

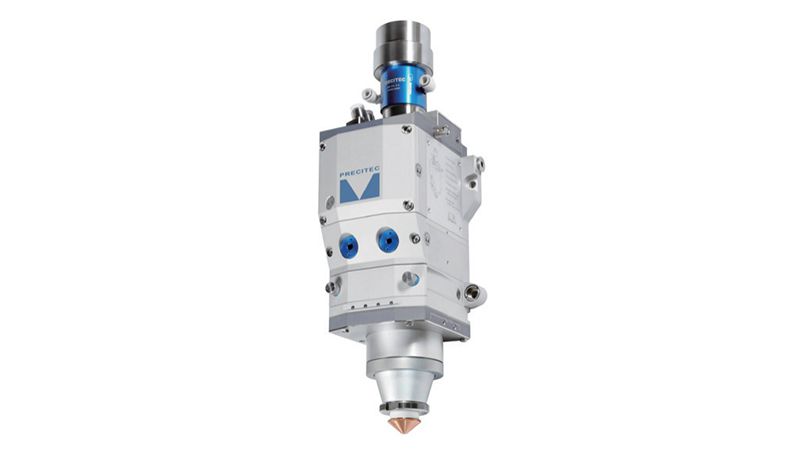

    1. Precitec fiber cutting head
    2. Precitec fiber cutting head

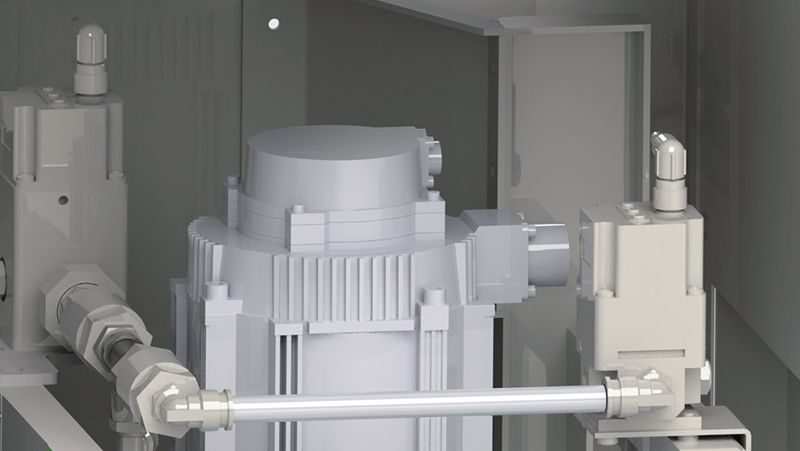

    1. Dual-proportional valve air circuit control
    2. Dual-proportional valve air circuit control
    1. Dual-side zoning exhaust design
    2. Dual-side zoning exhaust design

      Ensures efficient dust removal and environmental friendliness

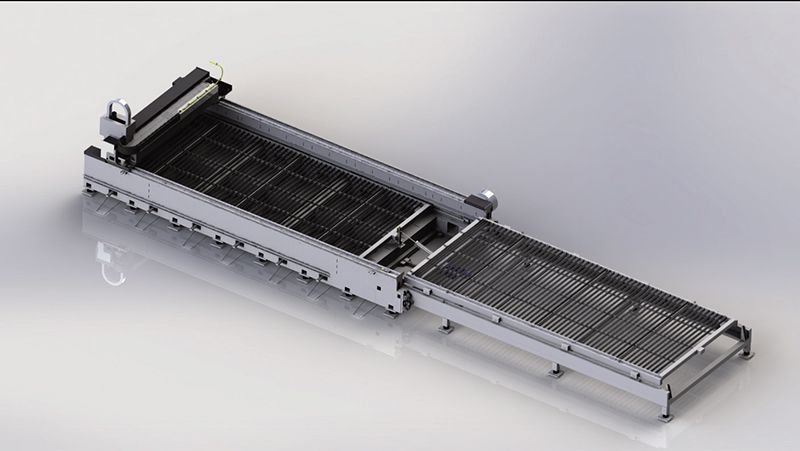

    1. High-speed double exchange worktable
    2. High-speed double exchange worktable
