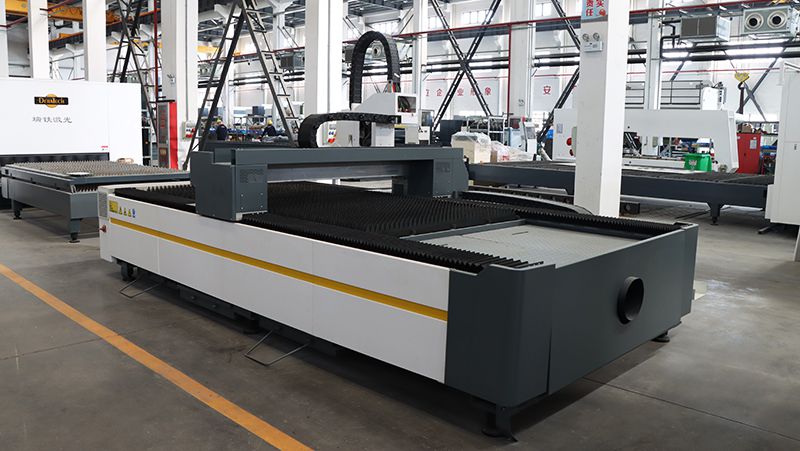

CNC Single Table Fiber Laser Cutting Machine

Future S Series

Future S series CNC single table fiber laser cutting machine comes with a compact and simple structure. In comparison to large table laser equipment with exchange worktables, it offers significant advantages in terms of size and space, providing a "small, fast, and flexible" processing approach.

Capability

Laser source: 3000W, available in 4 models

Applications

Sheet metal cutting

Automotive parts cutting

Engine components cutting

Cutting for construction & architecture

Processing of aluminum curtain walls

Enclosure/Cabinet bending processing

Kitchenware bending

Processing of agricultural machinery components

Parameters

Model	FS3015	FS4015	FS4020	FS6020	FS6025
Cutting range (mm)	3000*1500	4000*1500	4000*2000	6000*2000	6000*2500
X axis stroke (mm)	1550	1550	2050	2050	2550
Y axis stroke (mm)	3050	4050	4050	6050	6050
Z axis stroke (mm)	120
X/Y axis positioning accuracy (mm/m)	±0.03
X/Y axis repeat positioning accuracy (mm/m)	0.02
Max. positioning speed of X/Y axis (m/min)	100
Max. acceleration speed (g)	1.1
Laser source power (W)	≤6000

Details

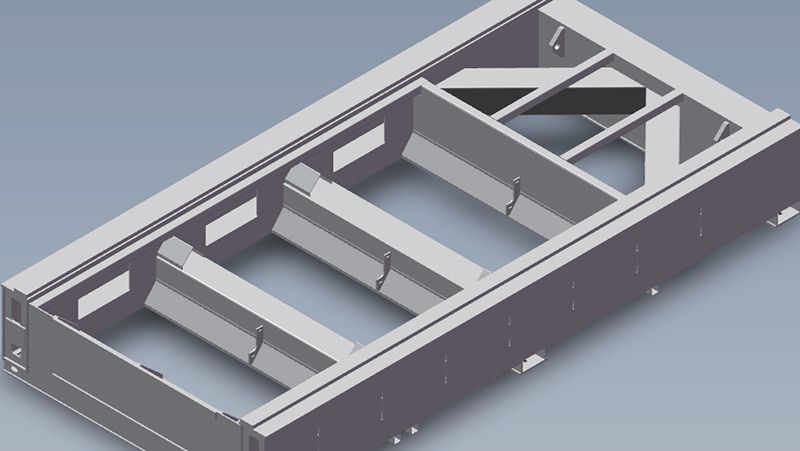

2. High-strength main frame

  The machine adopts an integral gantry structure with a high-strength steel welded bed, which undergoes annealing and stress relief treatment, ensuring high rigidity and minimal deformation.

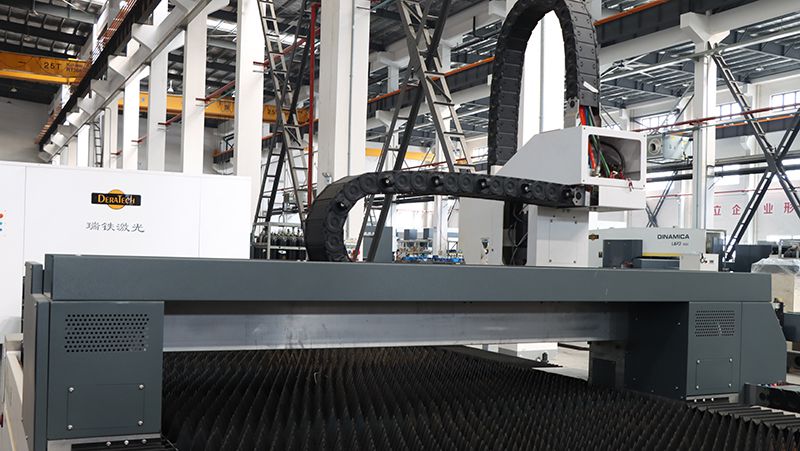

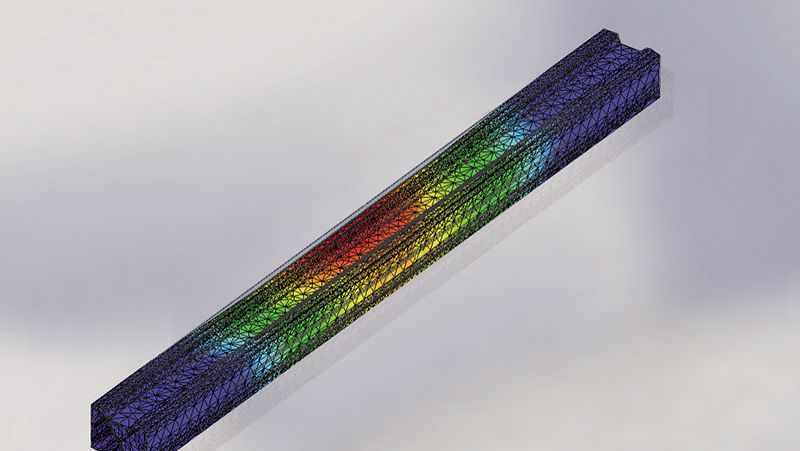

2. Aviation-grade specially formed aluminum beam

  The beam base and Z-axis slide plate features a high-strength cast aluminum integrated molding design, offering light weight, compact structure, high precision, and quick response.

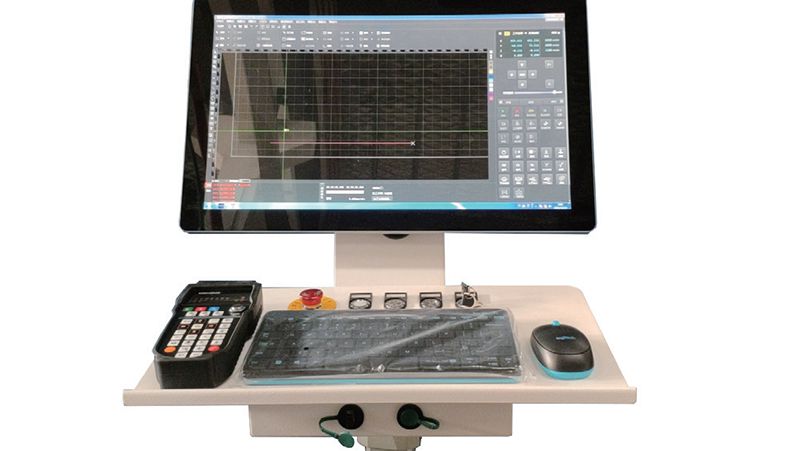

2. Weihong NcStudio-V15 CNC System
